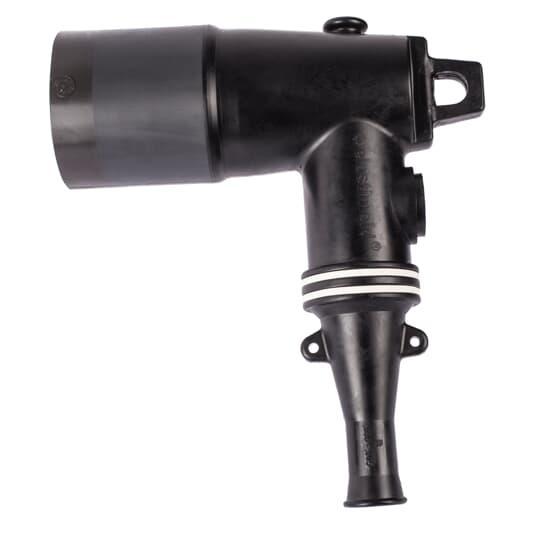

Elastimold® 261LR-C5220 Insulated Loadbreak Elbow Connector, 25 kV, 200 A, 2 to 1 AWG Conductor, 0.805 to 1.06 in Dia Insulation, EPDM Rubber
Sku #07511419099
MFG #261LR-C5220
Attributes
| Type: | Insulated |
| Amperage Rating: | 200 A |
| Conductor Type: | Compressed Stranded/Compacted Solid Bi-Metal |
| Voltage Rating: | 25 kV |
| Conductor Size: | 2 to 1 AWG |
| Insulation Diameter: | 0.805 to 1.06 in |
- ANSI/IEEE 386
- (1) Elbow Housing, (1) Compression Lug, (1) Probe, (1) Probe Wrench, (1) Tube Lubricant, (1) Crimp Chart and (1) Installation Instruction Sheet
- Fully shielded, fully submersible molded rubber housing
- 100% peroxide cured construction includes insulation and conductive EPDM materials
- Provision for hot stick operation
- Provision for ground wire connection
- Wide cable range with minimum number of sizes
- Long bi-metal compression lug is standard
- Without test point
- 1 Elbow Housing, 1 Compression Lug, 1 Probe, 1 Probe Wrench, 1 Tube Lubricant, 1 Crimp Chart, 1 Installation Instruction Sheet
