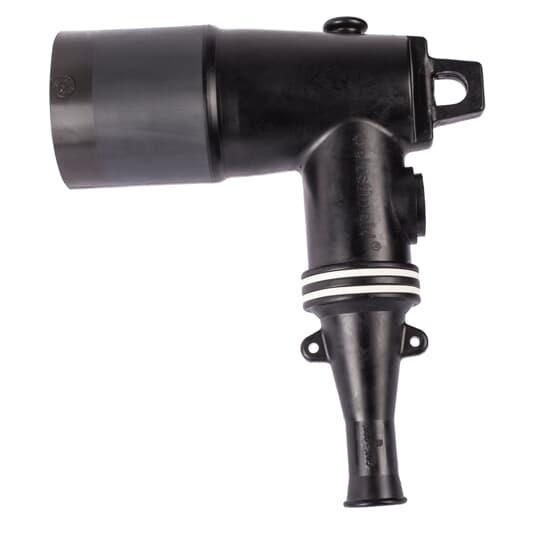

Elastimold® 261LR-B5240 Loadbreak Elbow Connector, 25/28 kV, 200 A, 1/0 AWG, 2/0 AWG Conductor, 0.635 to 0.905 in Dia Insulation, EPDM Rubber
Sku #07511419097
MFG #261LR-B5240
Attributes
| Series: | 261LR |
| Amperage Rating: | 200 A |
| Conductor Type: | Compact/Compressed/Solid/Stranded |
| Voltage Rating: | 25/28 kV |
| Conductor Size: | 1/0 AWG, 2/0 AWG |
| Insulation Diameter: | 0.635 to 0.905 in |
- Fully shielded, fully submersible molded rubber housing
- 100% peroxide cured construction includes insulation and conductive EPDM materials
- Provision for hot stick operation
- Provision for ground wire connection
- Wide cable range with minimum number of cable sizes
- Long bi-metal compression lug is standard
- Without test point
- 1/0 AWG stranded, 2/0 AWG solid
- Elbow Housing, Compression Lug, Probe, Probe Wrench, Tube Lubricant, Crimp Chart and Installation Instruction Sheet
- For connecting to and operating 28 kV class, 200 A distribution apparatus, it provides a convenient method to connect or disconnect systems
- ANSI/IEEE 386
