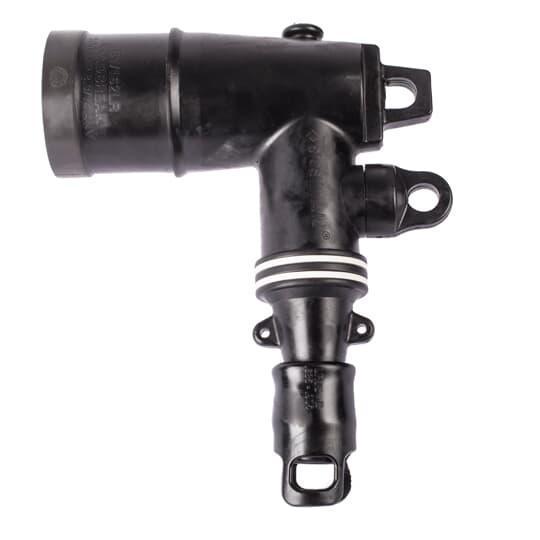

Elastimold® 162LRJS-C5260 Loadbreak Elbow Connector With Test Point, 15 kV, 200 A, 3/0 AWG, 4/0 AWG Conductor, 0.805 to 1.06 in Dia Insulation, EPDM Rubber
Sku #07511419090
MFG #162LRJS-C5260
Attributes
| Series: | 162LRJS |
| Amperage Rating: | 200 A |
| Conductor Type: | Compact/Compressed/Solid/Stranded |
| Voltage Rating: | 15 kV |
| Conductor Size: | 3/0 AWG, 4/0 AWG |
| Insulation Diameter: | 0.805 to 1.06 in |
- Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Tube Lubricant, Crimp Chart, Butyl Auto Tape, V.D. Cap-Peroxide and Installation Instruction Sheet
- ANSI/IEEE 386
- For connecting to and operating 15 kV class, 200 A distribution apparatus, it provides a convenient method to connect/disconnect cable and equipment on power distribution systems
- Fully shielded, fully submersible molded rubber housing
- 100% peroxide cured construction includes insulation and conductive EPDM materials
- Provision for hot stick operation
- Provision for ground wire connection
- Wide cable range with minimum number of cable sizes
- Long bi-metal compression lug is standard
- Built in cable jacket seal
- Non-corrosive capacitive test point
- 3/0 AWG stranded, 4/0 AWG solid
