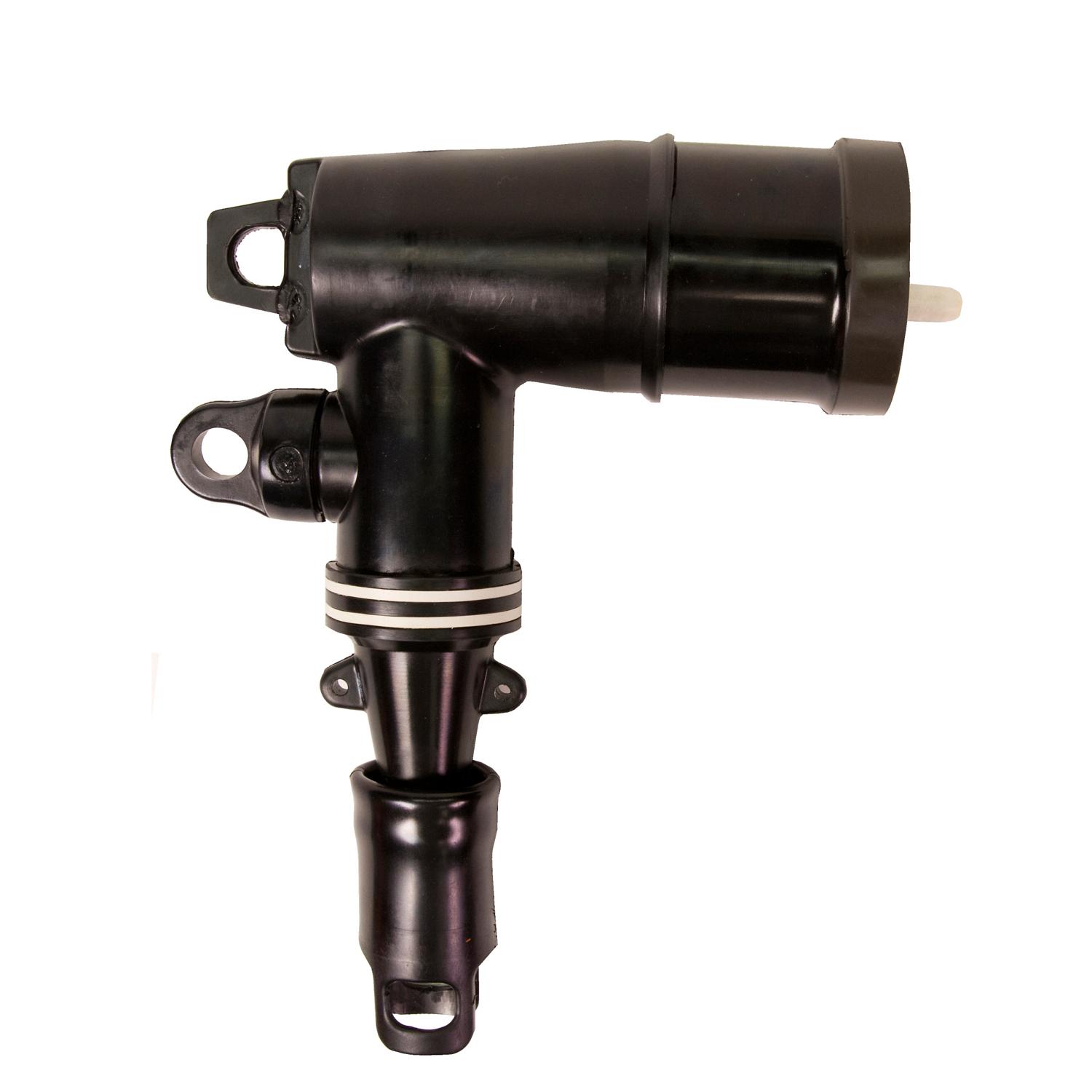

Elastimold® 162LRJS-A Loadbreak Elbow Connector With Test Point, 15 kV, 200 A, 0.575 to 0.74 in Dia Insulation, EPDM Rubber
Sku #07511419065
MFG #162LRJS-A
Attributes
| Series: | 162LRJS |
| Amperage Rating: | 200 A |
| Connector Type: | Compression |
| Voltage Rating: | 15 kV |
| Insulation Diameter: | 0.575 to 0.74 in |
| Material: | EPDM Rubber |
- For connecting to and operating 15 kV class, 200 A distribution apparatus, it provides a convenient method to connect/disconnect cable and equipment on power distribution systems
- Fully shielded, fully submersible molded rubber housing
- 100% peroxide cured construction includes insulation and conductive EPDM materials
- Provision for hot stick operation
- Provision for ground wire connection
- Wide cable range with minimum number of cable sizes
- Long bi-metal compression lug is standard
- Built in cable jacket seal
- Non-corrosive capacitive test point
- Elbow Connector Housing
- ANSI/IEEE 386
