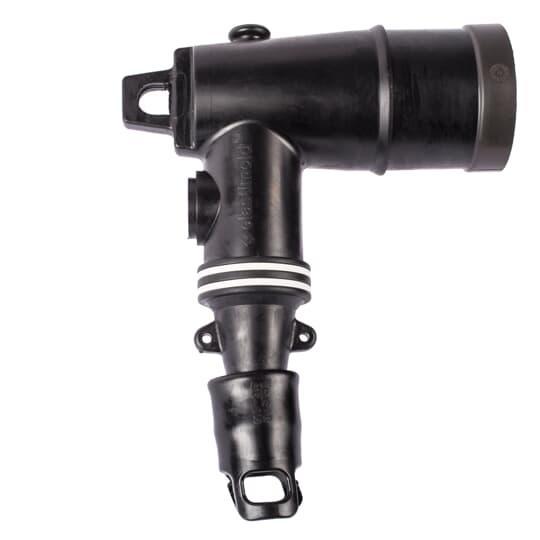

Elastimold® 161LRJS-C5260 Insulated Loadbreak Elbow Connector, 15 kV, 200 A, 3/0 to 4/0 AWG Conductor, 0.805 to 1.06 in Dia Insulation, EPDM Rubber
Sku #07511418552
MFG #161LRJS-C5260
Attributes
| Type: | Insulated |
| Amperage Rating: | 200 A |
| Conductor Type: | Compressed Stranded/Compacted Solid Bi-Metal |
| Voltage Rating: | 15 kV |
| Conductor Size: | 3/0 to 4/0 AWG |
| Insulation Diameter: | 0.805 to 1.06 in |
- Fully shielded, fully submersible molded rubber housing
- 100% peroxide cured construction includes insulation and conductive EPDM materials
- Provision for hot stick operation
- Provision for ground wire connection
- Built-in cable jacket seal
- -40 to 65 deg C temperature rating
- Without test point
- (1) Elbow Connector Housing, (1) Bi-Metal Compression Lug, (1) Probe, (1) Lubricant Tube, (1) Crimp Chart, (1) Butyl Auto Tape, (1) Installation Instructions
- (1) Elbow Connector Housing, (1) Bi-Metal Compression Lug, (1) Probe, (1) Lubricant Tube, (1) Crimp Chart, (1) Butyl Auto Tape and (1) Installation Instructions
- For all applications including pad mount, subsurface, vault, indoor, outdoor, direct sunlight, direct buried and continuously submerged in water
- ANSI Specified|IEEE 386
