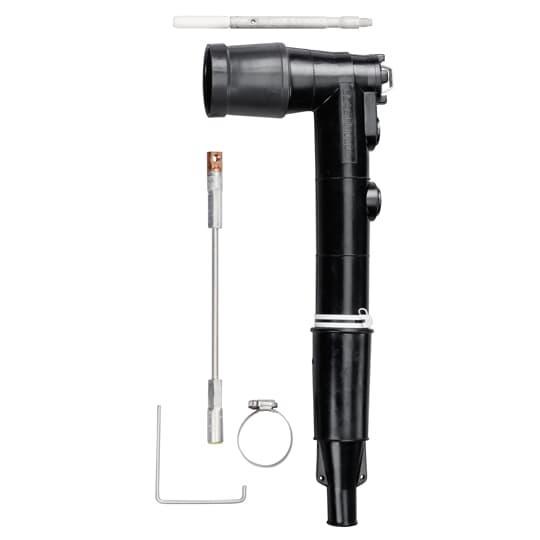

Elastimold® 273RLR-H5230 Loadbreak Replacement Elbow Connector, 15 kV, 200 A, 1 AWG Stranded/Compressed, 1/0 AWG Solid/Compact, 50 sq-mm Compact Conductor, 0.85 to 1.05 in Dia Insulation, EPDM Rubber
Sku #07511415091
MFG #273RLR-H5230
Attributes
| Series: | 273RLR |
| Amperage Rating: | 200 A |
| Insulation Diameter: | 0.85 to 1.05 in |
| Voltage Rating: | 15 kV |
| Conductor Size: | 1 AWG Stranded/Compressed, 1/0 AWG Solid/Compact, 50 sq-mm Compact |
| Material: | EPDM Rubber |
- Fully shielded, fully submersible molded rubber housing
- 100% peroxide-cured insulation, insert and jacket
- Provision for hot stick operation
- Provision for ground wire connection
- Wide cable range with minimum number of sizes
- Extended length housing and compression lug - plus 3-1/4 in
- Without test point
- For connecting to and operating 25 kV class, 125 kV BIL apparatus
- (1) 273BRLR-W Elbow Connector Housing, (1) 00400XXX Compression Lug, (1) 274LRF Probe, (1) 271-94 Probe Wrench, (1) 82-08 Lubricant Tube, (1) IS-0425 Installation Instructions and (1) CC-0060 Crimp Chart
- ANSI Specified|IEEE 386
