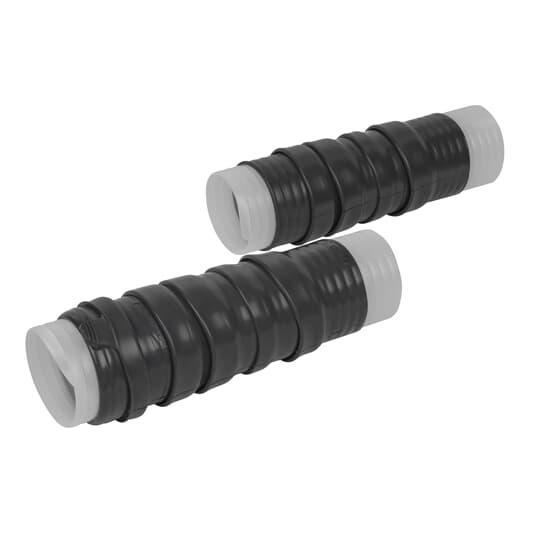

Elastimold® Ranger2™ R2T35J4-N0240-B3 Cable Termination, Silicone Rubber, Dark Gray
Sku #07511413625
MFG #R2T35J4-N0240-B3
Attributes
| Series: | R2T35 |
| Material: | Silicone rubber |
| Dimensions: | 3.5 in Dia x 16.8 in L |
| Specifications: | 35 kV, 1 ph, 48 to 62 Hz, Concentric Neutral/Jacketed Cable, 1/0 AWG Stranded/Compressed, 2/0 AWG Solid/Compact, 1.3 to 2.1 in Insulation, 2-Hole Spade Connector, -22 to 149 deg F |
| Color: | Dark Gray |
| Country of Origin: | US |
- Lightweight, compact design
- Pull down tabs for easy installation
- Thick wall construction
- Non-tracking silicone housing provides superior memory and weathering characteristics
- Shrink fit housing uses common installation procedures and cable preparation dimensions
- Field removable center core allows for easy installation
- Eight sheds for 35 kV outdoor model
- Two sizes cover entire cable range from 2 AWG to 1250 kcmil
- Units accommodate popular XLP and EPR cable types and shield constructions
- Installs in restricted spaces
- Permits application where free hanging is desired
- IEEE 48 Class 1A
- Outdoor Applications
- (1) Ranger2™ Housing Top/Bottom, (1) Silicone Lubricant, (2) Plastic Gloves, (1) IS-1143 Installation Instruction, (1) Butyl Auto Tape and (2) Silicon Tape Roll
