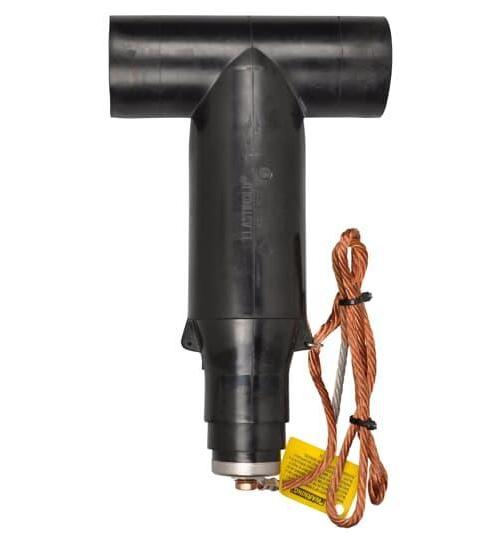

Elastimold® K655ESA-18 Shielded Surged Elbow Surge Arrester, EPDM Rubber, 15/25 kV Surge protection, 600 A
Sku #07511409633
MFG #K655ESA-18
Attributes
| Type: | Shielded Surged |
| Surge Protection Voltage: | 15/25 kV |
| Temperature Rating: | -40 to 65 deg C |
| Duty Cycle Voltage: | 18 kV |
| Amperage Rating: | 600 A |
| Material: | EPDM Rubber |
- Provides convenient energized connection with other 600 A loadbreak or deadbreak components
- Fully shielded and fully submersible for a variety of applications
- Enables installation in your existing cabinetry, saving you money
- Surge arresters fit your application and are easy to install
- Eliminates the need for additional accessories, saving even more money
- Withstands 10000 A for 10 cycles without fusing
- Controls end plug when ejected, preventing uncontrolled trajectory
- Maintains the housing shield ground connection after failure
- The K655ESA Elastimold® metal oxide varistor (MOV) surge arrester is a fully shielded, fully submersible arrester with standard ANSI/IEEE 386 connection with other energized 600 A loadbreak components
- The K655ESA provides high voltage lightning and switching surge protection of transformers, cable, equipment, and other components typically located on underground power distribution systems
- Proper placement, voltage selection, and coordination with riser pole arresters minimize damaging surge voltages by improving protective margins
- Installing an arrester at the end of a radial system or at both ends of an open point on a loop system
- Additional arresters can be added at strategic locations upstream from the end point for maximum protection
- Underground Medium Voltage Applications
- ANSI/IEEE 386 Approved|EEE C62.11-2012
