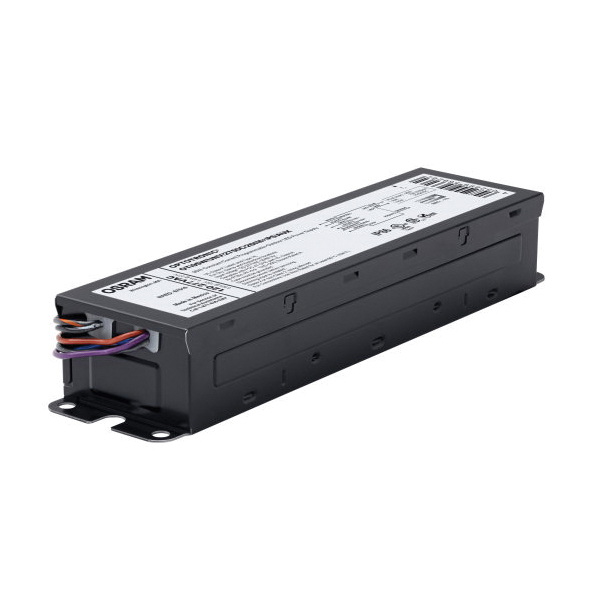

Sylvania OTI95WUNV2750C2DIMP6/57509 LED Drivers

Documents

Sylvania OPTOTRONIC® OTI95WUNV2750C2DIMP6/57509 Constant Current Dimmable Outdoor Programmable Intelligent LED Driver, 120 to 277 V AC Input, 15 to 54 V DC Output, 95 W Power Rating, 9-1/2 in L 2.3 in W

Sku #04613557509

MFG #OTI95WUNV2750C2DIMP6/57509

Attributes

Type:	Constant Current Dimmable Outdoor Programmable
Output Voltage:	15 to 54 V DC
Amperage Rating:	2.75 A

Input Voltage:	120 to 277 V AC
Power Rating:	95 W
Power Factor:	>0.9

Programming does not require powering up or connecting the power supply to AC line voltage
0.92 A at 120 VAC/0.4 A at 277 VAC input, 700 to 2750 mA at 15 to 54 VDC output
Dimming down to 10% on 0 to 10 V dimmers and 10% on DALI or DEXAL™
OEM programmable with 1 mA resolution to perfectly match LED load and maximize performance
UL damp Rated
Integrated OEM programmable features include AstroDIM, LEDset, constant lumen maintenance, LED thermal protection, auxiliary output
High levels of line transient protection for outdoor applications (6 kV)
UL class P listed
IP66 rated

Architectural Building Mounted, Bollards, Cobra Heads, Decorative Landscape Lighting, High Mast, Industrial High Bay, Mini Wall Packs, Roadway Lighting and Shoe Box
