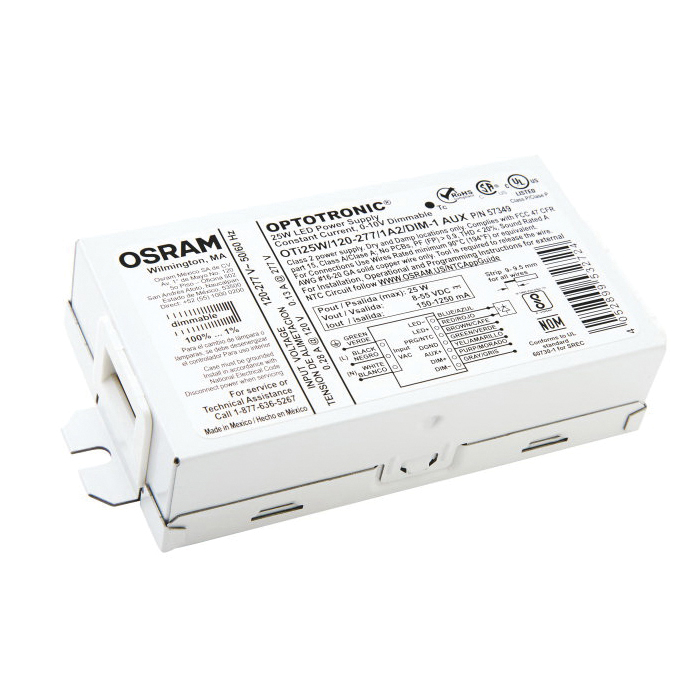

Sku #04613557347
MFG #OTI25W1202771A2DIM1/57347
Attributes
| Type: | Dimmable Constant Current Compact Programmable |
| Output Voltage: | 8 to 55 V DC |
| Amperage Rating: | 0.5 A |
| Input Voltage: | 120 to 277 V AC |
| Power Rating: | 25 W |
| Power Factor: | >90 % |
- Custom programmable with 1 mA resolution to perfectly match LED load and maximize performance
- Programming does not require powering up or connecting the power supply to AC line voltage
- Integrated OEM programmable features include - constant lumen maintenance, end-of-life indication, LED thermal protection, soft start, dim-to-off
- 0.26 A at 120 VAC/0.12 A at 277 VAC input, 150 to 1250 mA at 8 to 55 VDC output
- Protection against line voltage on 0 to 10 V dimming wires
- Wide output current and voltage range
- For custom tuning at LSOD
- Downlights, In-Grade Fixtures, Recessed Troffer and Wall Washing
- CA T-24|CSA Certified|cULus Listed|EMI Compliant|FCC Part 15 Class A|IP20 Rated|NEMA SSL1|NOM 47 CFR Part 15 Class A|RoHS Compliant|UL 60730-1 File No. E320395
