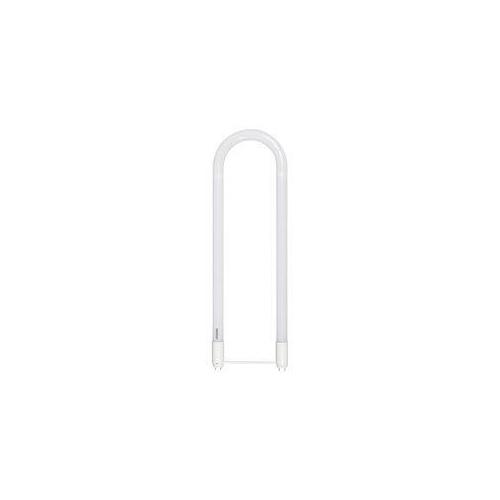

Sku #04613540614
MFG #LED15T8/U/FP/841/BF/40614
Attributes
| Type: | U-Bend Double Ended |
| Wattage: | 15 W |
| Voltage Rating: | 120/277 V AC |
| Designation: | LED15T8/U/FP/841/BF |
| Incandescent Equivalent: | 32 W |
| Lamp Base Type: | G13 |
- Education, General Illumination, Hospitality, Office and Retail Spaces
- Installed directly on 120 to 277 V, no ballast required
- Provides instant light and uniform light distribution plastic construction with stable lamp to lamp color
- Long life lowers maintenance costs
- When installing the LEDlescent™ T8 U-bend lamps, the UL rating of the existing fixture is not voided (even when it is electrically modified), since our LEDlescent™ T8 U-bend lamp is UL classified (as a luminaire conversion retrofit kit) under UL standard 1598C
- The full product family offering, in multiple color temperatures, covers a wide variety of applications
- Double ended platform where lamp is wired end-to-end preventing non-passive failure of a fluorescent lamp should it be inadvertently installed in the fixture
- Engineered to operate directly on 120 to 277 V, these lamps minimize labor and recycling costs
- Beam angle 160 deg and light emitting area 240 deg
- No warm-up time, instant-on with full light output and stable lamp to lamp color
- These T8 U-bend ballast free lamps provide instant light and a uniform light distribution
- For use with shunted and non-shunted sockets therefore no socket change is needed
- LEDlescent™ CURVALUME® LED T8 U-bend ballast free lamps are a lightweight, energy saving alternative to replace traditional fluorescent T8 U-bend lamps by bypassing the existing ballast
- Maximize energy savings with occupancy sensors
- Easiest way to upgrade to LED technology
- Since the user is retrofitting with a UL 1598C classified LED kit, the installer must follow the installation instructions included with the lamps for the modified fixture to retain its UL rating
- Reduced energy usage saves operational costs, resulting in attractive payback time
- Internal power supply - no ballast required
- End-to-end illumination including the "U" bend part
- Double ended wiring schematic, reducing shock hazard
- UL 1598C standard covers LED retrofits intended for an existing UL rated fixture
- DLC Listed|ETL Listed|NSF Approved|RoHS Compliant|Type B cULus Listed
