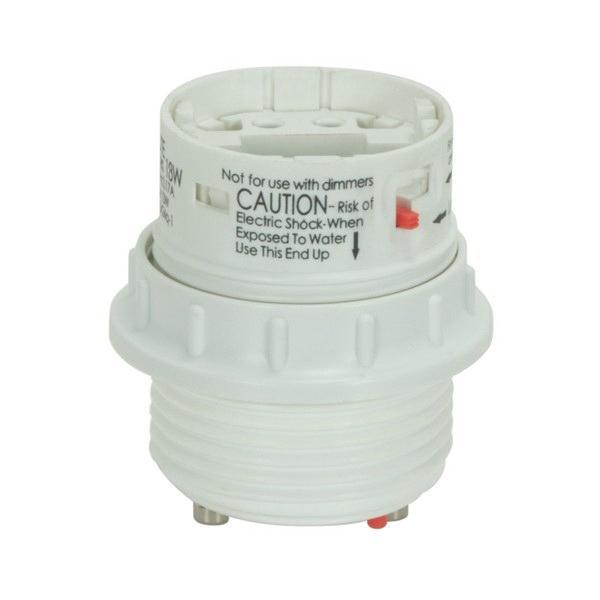

SATCO® 80-2076 Self-Ballasted Lampholder, 18 W Lamp, 277 V AC, 0.23 A, G24q-2 Lamp
Sku #04592382076
MFG #80-2076
Attributes
| Type: | Self-Ballasted |
| Voltage Rating: | 277 V AC |
| Frequency Rating: | 60 Hz |
| Lamp Wattage: | 18 W |
| Amperage Rating: | 0.23 A |
| Ballast Type: | Electronic |
- Phenolic socket with UNO ring
- Tab locking socket
- Instant Start ballast
- Withstand dielectric voltage test (Hi-Pot) at 1250 VAC for one minute
- Power factor (PF) >50 percent
- -20 to 50 deg C ambient temperature
- Automatically protected from poor contact between lamp and lampholder, air leakage into bulb and damaged bulb
- A quick-blow fuse is integrated into the lampholder to protect against power surges and the lampholder would have to be replaced when the fuse is blown
- Without Cap
- cULus Listed|RoHS Compliant
- For dry, damp and wet locations
