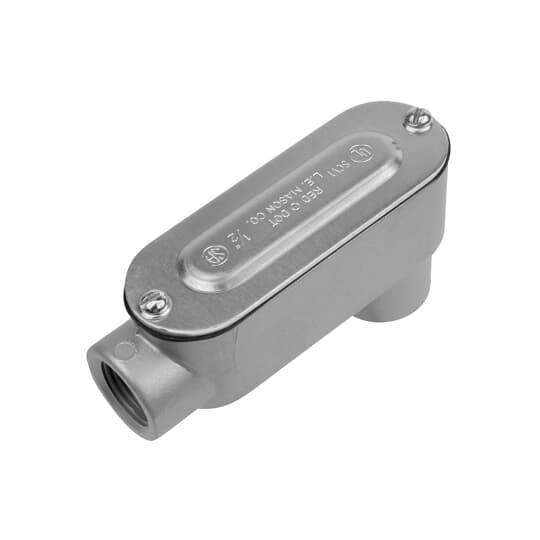

Red Dot® D-Pak™ DALB-5-CG A Series Type LB Conduit Body With Cover, Gasket, 1-1/2 in Hub, 32 cu-in Capacity, Die Cast Aluminum
Sku #04226981074
MFG #DALB-5-CG
Attributes
| Type: | Type LB |
| Hub Size: | 1-1/2 in |
| Capacity: | 32 cu-in |
| Series: | A Series |
| Number of Hubs: | 2 |
| Connection Type: | NPT/Set Screw |
- Copper-free aluminum provides increased corrosion-resistance
- Precision cast and machined surfaces permit safer wire pulling
- Clean cover edges provide good gasket sealing
- Precision NPT threaded and set screw hubs allow trouble-free field installation
- Retained deep slotted stainless steel cover screws for faster installation
- Clear UL, CSA and cubic content markings speed approval by inspectors
- Spacious, accessible wiring chamber provides a convenient location to pull conductors and make splices
- Aluminum conduit bodies can be used with steel rigid conduit NEC 346-1 and steel EMT, NEC 348-1
- Combination packaging of conduit body, cover and gasket reduces handling and inventory costs
- Back access opening
- Provide access for pulling, splicing and maintenance
- See through wrapper provides instant identification and protects product on job site
- Red Dot® quality in durable, die cast aluminum construction made to endure the elements
- For EMT/rigid/IMC conduit
- UL E28688
