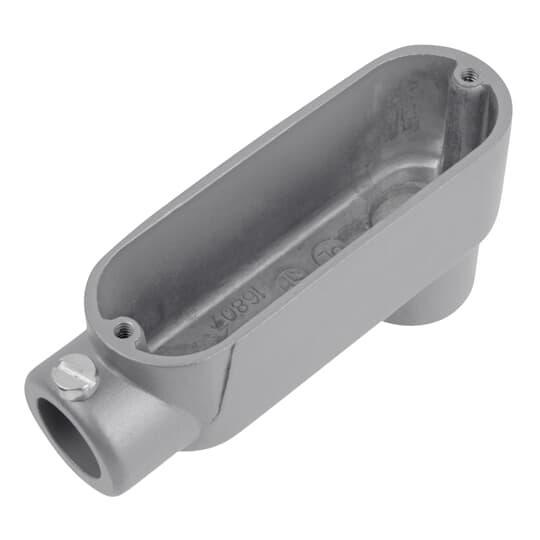

Red Dot® BLB-7 Type LB Conduit Body, 2-1/2 in Hub, 190 cu-in Capacity, Die Cast Aluminum
Sku #04226933340
MFG #BLB-7
Attributes
| Type: | Type LB |
| Hub Size: | 2-1/2 in |
| Capacity: | 190 cu-in |
| Series: | B Series |
| Number of Hubs: | 2 |
| Connection Type: | NPT/Set Screw |
- Copper-free aluminum provides increased corrosion-resistance
- Precision cast and machined surfaces permit safer wire pulling
- Clean cover edges provide good gasket sealing
- Precision NPT threaded and set screw hubs allow trouble-free field installation
- Retained deep slotted stainless steel cover screws for faster installation
- Clear UL, CSA and cubic content markings speed approval by inspectors
- Spacious, accessible wiring chamber provides a convenient location to pull conductors and make splices
- Aluminum conduit bodies can be used with steel rigid conduit NEC 346-1 and steel EMT, NEC 348-1
- 90 deg hub location
- Back access opening
- Provide access for pulling, splicing and maintenance
- Smooth throats for easy wire pulling
- Retained stainless steel cover screws
- For EMT/rigid/IMC conduit
- UL E28688, CSA
