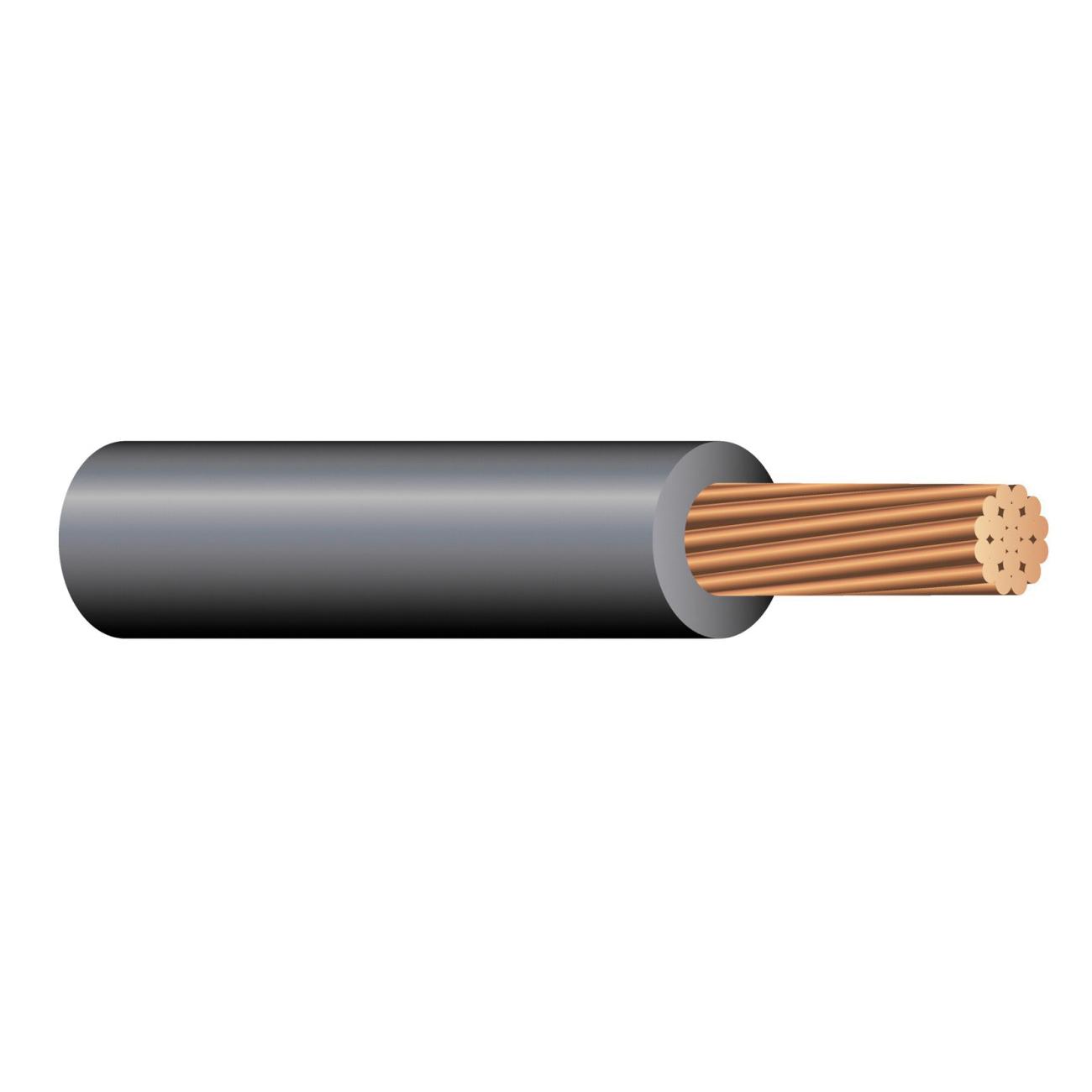

Southwire® SIMpull® 26727805 Type XHHW-2 Building Wire, 600 V AC, 3 AWG Copper Conductor, Black
Sku #03288624173
MFG #26727805
Attributes
| Type: | Type XHHW-2 |
| Amperage Rating: | 110 A |
| Conductor Size: | 3 AWG |
| Voltage Rating: | 600 V AC |
| Conductor Type: | Copper |
| Outside Diameter: | 340 mm |
- Sim Technology® for easier pulling
- SIMpull® XHHW-2 conductors may be used in wet or dry locations at temperatures not to exceed 90 deg C
- This cable can be installed without the need for pulling lubricant
- For use in circuits where dielectric constant or 3.5 or less is required
- 85 A at 60 deg C, 100 A at 75 deg C and 110 A at 90 deg C ampacities
- Gas, high-heat, moisture, oil, sunlight resistant
- Southwire® type SIMpull® XHHW-2 copper conductors are annealed (soft) copper
- Used in conduit or other recognized raceways for services, feeders and branch circuit wiring
- UL Listed|ICEA S-95-658 Required|RoHS Compliant
