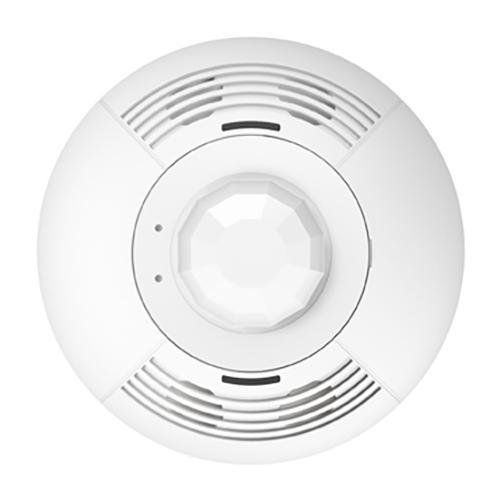

Lutron® ULOS-CDT-500R-WH LOS-CDT Occupancy Sensor Switch, 20 to 24 V, Ultrasonic and Passive Infrared Sensor, 500 sq-ft Coverage, 180 deg Viewing, Ceiling Mounting
Sku #02755786002
MFG #ULOS-CDT-500R-WH
Attributes
| Type: | Occupancy |
| Voltage Rating: | 20 to 24 V |
| Sensor Type: | Ultrasonic and Passive Infrared |
| Series: | LOS-CDT |
| Amperage Rating: | 33 mA |
| Coverage: | 500 sq-ft |
- For Lighting Control
- Suited for complex environments that are difficult to control with single-technology sensors
- Non-Volatile Memory settings saved in protected memory are not lost during power outages
- Affords choice of turning lights off or dimming to a preset level in the unoccupied state when integrated with a Lutron system
- The technology eliminates manual sensitivity and timer adjustments during installation and over the life of the product
- Photo Cell (R Models only)
- Prevents light from turning on when there is sufficient natural light
- Sensitivity 0 - 1000 LUX adjustable
- UL, cUL
