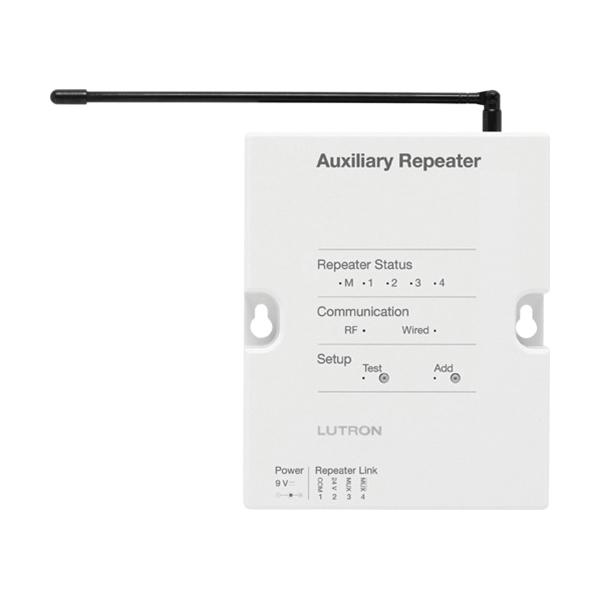

Lutron® RR-AUX-REP-WH RadioRA® Auxiliary Repeater
Sku #02755777466
MFG #RR-AUX-REP-WH
Attributes
| Series: | RadioRA® |
| Mounting Type: | Ceiling/Surface |
| Environmental Conditions: | 0 to 90% Non-Condensing Humidity |
| Power Supply: | 300 mA at 120 V AC |
| Temperature Rating: | 32 to 104 deg F |
| Dimensions: | 5-1/4 in H x 4-1/4 in W x 1-1/16 in D |
- Power failure memory should power be interrupted, the repeater will return to its previous state when power is restored
- Up to four (4) auxiliary repeaters can be added to extend the RF range for larger system applications
- Each repeater has an RF range of 30 ft, covering a total area of approximately 2500 sq-ft
- Test button enters the system diagnostic mode
- System with 2 main repeaters must be connected via ethernet
- RS485 port to connect to other repeaters through a wired link (daisy-chain)
- One LED on, powered by the 9 V adapter test condition
- Tested to withstand electrostatic discharge without damage or memory loss
- Main repeaters allow configuration and integration to the system through ethernet or RS232 ports
- Ethernet, RS232 and RS485 main repeater, white color
- 6.25 in antenna length
- For systems that extend up to 30 ft (9 m), one (1) main repeater is required to set up the system
- Can be programmed from a PC
- Mount on a wall, ceiling, or level surface using the two M3 screws provided
- Indoor Applications
- Industry Canada Certified|FCC Approved|ASEP Certified|CRC Certified|SUTEL Certified|ASEP/COFETEL/CRC and FCC Certified|cULus Listed|INDOTEL Certified and SUTEL Certified
