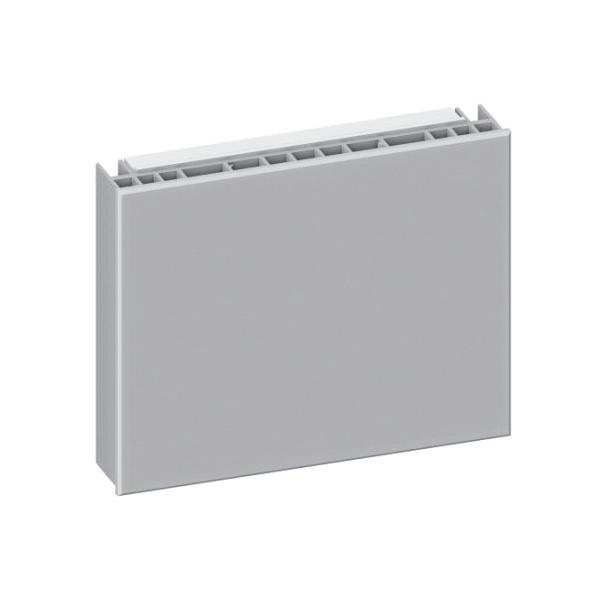

Lutron® PHPM-WBX-120-WH EcoSystem® Phase Adaptive Power Module, 120 VAC, 16 A, 12 AWG Wire Connection, 3 Wires
Sku #02755762476
MFG #PHPM-WBX-120-WH
Attributes
| Type: | Phase Adaptive |
| Voltage Rating: | 120 V AC |
| Number of Wires: | 3 |
| Series: | EcoSystem® |
| Amperage Rating: | 16 A |
| Connection Type: | 12 AWG Wire |
- Surface or recess mount
- Power module is UL tested and approved for use in air plenums
- Phase adaptive technology automatically selects leading edge or trailing edge dimming for low voltage transformers
- Up to (3) power modules may be controlled by a single dimmer
- Relative humidity less than 90% non-condensing, indoor use only
- Not for use with non-dim loads
- When connected to a 20 A circuit breaker, provides capacity on a 3-wire fluorescent dimmer for a full 16 A load of lighting
- 0 to 40 deg C ambient operating temperature
- Used to dim incandescent, halogen, electronic low voltage, magnetic low voltage, neon/cold cathode, Lutron® Tu-Wire® or Advance Mark X lighting sources
- 1920 W capacity
- For use with GRAFIK Eye® QS, 3000 series control units, LP, LCP, GP dimming panels, HomeWorks®, HomeWorks® QS remote power panels and indoor applications
- CSA Certified|NEC 2014 300.22|UL Listed|NOM Certified
