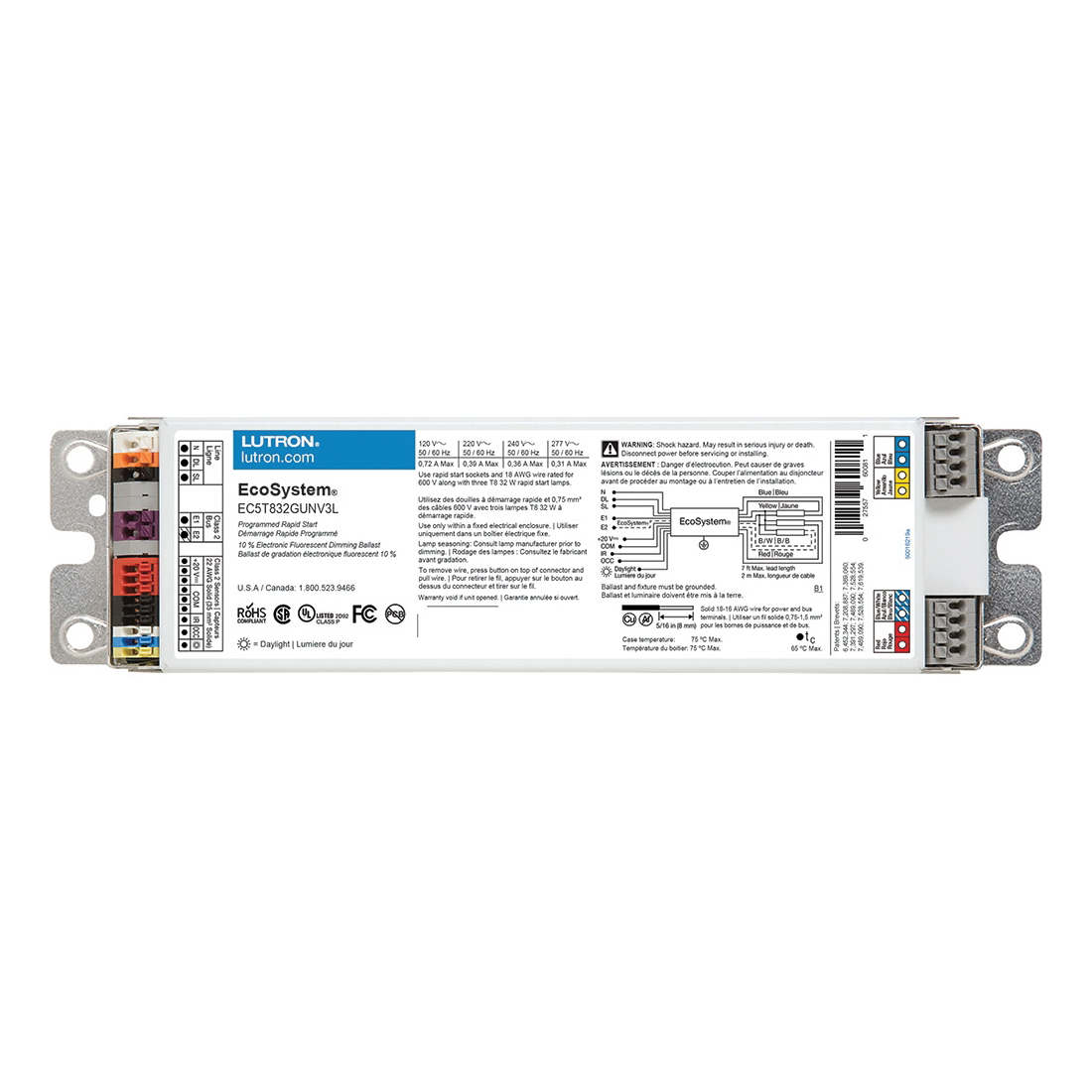

Lutron® EC5T832GUNV3L EcoSystem® 3-Wire 5-Control G-Type Case Universal Digital Dimming Ballast, T8 Lamp, 32 W Lamp, 120/240/277 VAC, Programmed/Rapid, 0.85 Ballast Factor
Sku #02755760081
MFG #EC5T832GUNV3L
Attributes
| Type: | 3-Wire 5-Control G-Type Case Universal |
| Lamp Type: | T8 |
| Wattage: | 84/85.9/86.5 W |
| Series: | EcoSystem® |
| Lamp Wattage: | 32 W |
| Voltage Rating: | 120/240/277 VAC |
- Power and Lamp Leads
- Dims to 10% (5% for T4 ballasts)
- Non-volatile memory restores all ballast settings after power failure
- Continuous, flicker free dimming from 100 to 10%
- 0.72 A at 120 VAC, 0.36 A at 240 VAC, 0.31 A at 277 VAC
- Communicates status and sensor inputs over the EcoSystem® digital link
- Protected from miswires of any input power to control lead or from lamp leads to each other and ground
- Also compatible with Lutron® 3 wire fluorescent controls
- Integral sensor connection provides power for and responds to one occupancy sensor, one photo sensor and one personal control input (infrared receiver or wallstation)
- Ballasts maintain consistent light output for differing lamp lengths
- Programmed rapid start design ensures full rated lamp life while dimming and cycling
- 100% performance tested at factory
- End of lamp life protection circuitry ensures safe operation throughout entire lamp life
- Frequency of operation ensures that ballast does not interfere with infrared devices
- EcoSystem® ballasts communicate via an EcoSystem® digital bus and connect directly to sensors and controls
- Ultra quiet operation
- Lamps turn on to any dimmed level without flashing to full brightness
- Low harmonic distortion throughout the entire dimming range maintains power quality
- UL Listed|CSA Certified|UL 935|C22.2 File No. 74|ANSI C82.11|FCC Part 18|ANSI C62.41|ANSI/ESD S20.20|NOM Certified|S Mark Certified
