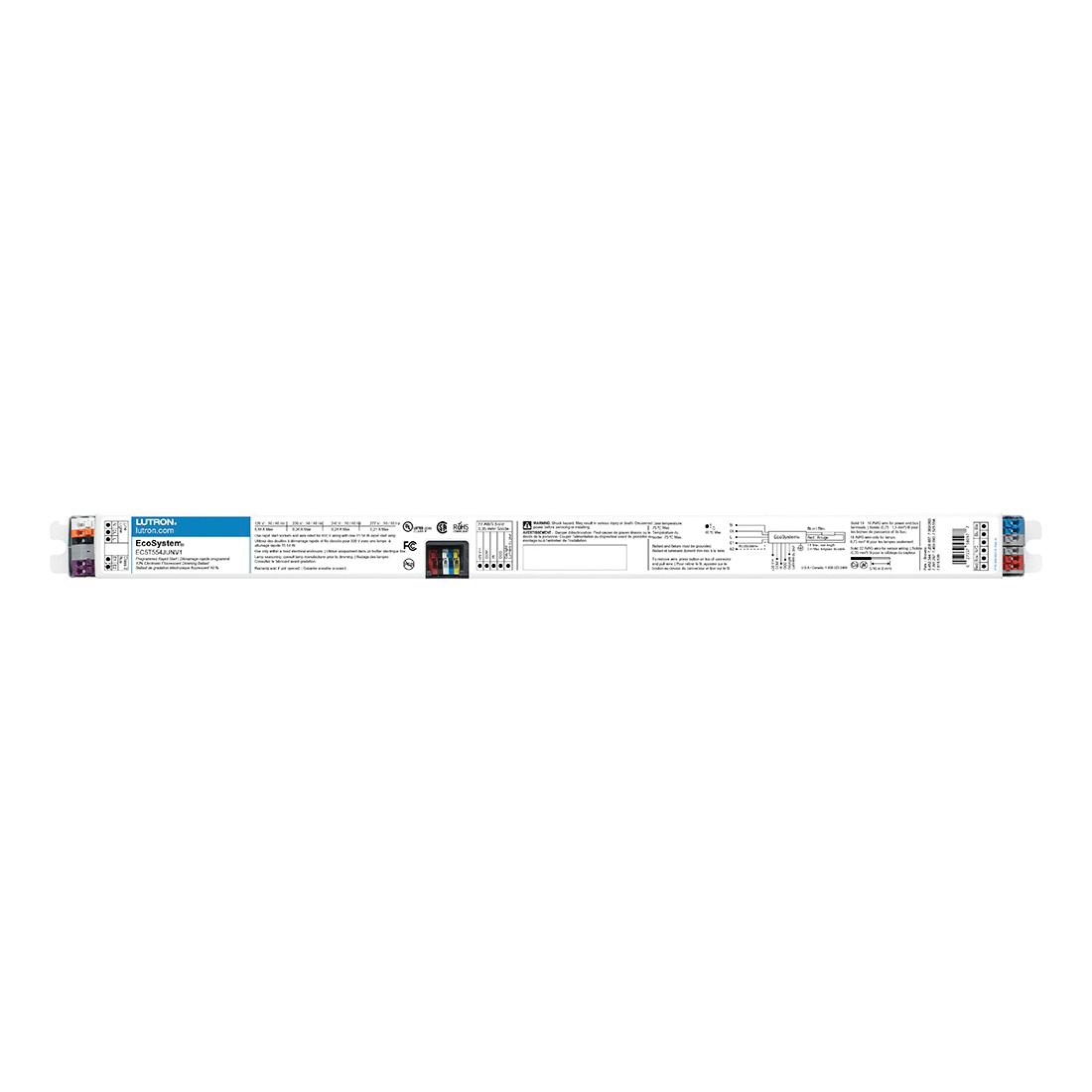

Lutron® EC5T554JUNV1 EcoSystem® 3-Wire 5-Control J-Type Case Universal Digital Dimming Ballast, T5HO Lamp, 54 W Lamp, 120/240/277 VAC, Programmed/Rapid, 1 Ballast Factor
Sku #02755758097
MFG #EC5T554JUNV1
Attributes
| Type: | 3-Wire 5-Control J-Type Case Universal |
| Lamp Type: | T5HO |
| Wattage: | 56.5/58/57.9 W |
| Series: | EcoSystem® |
| Lamp Wattage: | 54 W |
| Voltage Rating: | 120/240/277 VAC |
- For any compact fluorescent application
- C22.2 File No. 74|FCC Part 18|NOM Certified|S Mark Certified|UL 935, CSA C22.2 No 74 Approved|ANSI C82.11|ANSI C62.41|ANSI/ESD S20.20
- J case size
- Within a fluorescent fixture mounting
- Non-volatile memory restores all ballast settings after power failure
- Continuous, flicker free dimming from 100% to 10%
- Communicates status and sensor inputs over the EcoSystem® digital link
- 0.48 A at 120 VAC, 0.24 A at 240 VAC, 0.21 A at 277 VAC
- Low harmonic distortion throughout the entire dimming range
- 1.73/1.77 ballast efficacy factor
- 86/88 lm/W system efficacy
- Programmed rapid start design ensures full rated lamp life while dimming and cycling
- Integral sensor connection provides power for and responds to one occupancy sensor, one photo sensor, and one personal control input (infrared receiver or wall station)
- Protected from miswires of any input power to control lead, or from lamp leads to each other and/or ground
- 100% performance tested at factory
- End of lamp life protection circuitry ensures safe operation throughout entire lamp life
- Frequency of operation ensures that ballast does not interfere with infrared devices
- Ultra quiet operation
- Without leads
- Lamps turn on to any dimmed level without flashing to full brightness
- 5000 lumens
- Ballasts maintain consistent light output for linear lamp lengths
