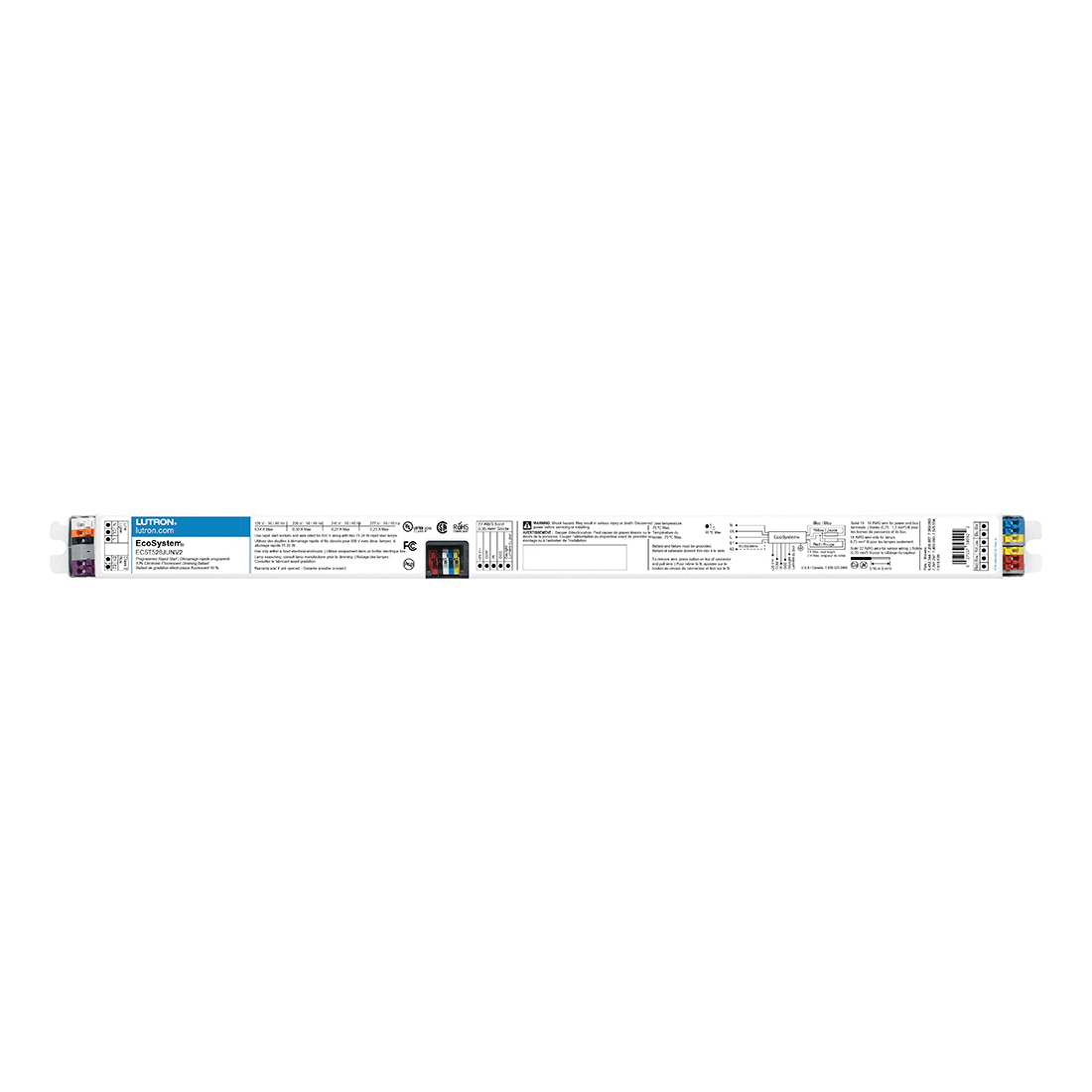

Lutron® EC5T528JUNV2 EcoSystem® 3-Wire 5-Control J-Type Case Universal Digital Dimming Ballast, T5 Lamp, 28 W Lamp, 120/240/277 VAC, Programmed/Rapid, 1 Ballast Factor
Sku #02755758092
MFG #EC5T528JUNV2
Attributes
| Type: | 3-Wire 5-Control J-Type Case Universal |
| Lamp Type: | T5 |
| Wattage: | 64.5/65/65.2 W |
| Series: | EcoSystem® |
| Lamp Wattage: | 28 W |
| Voltage Rating: | 120/240/277 VAC |
- For any compact fluorescent application
- J case size
- Within a fluorescent fixture mounting
- Non-volatile memory restores all ballast settings after power failure
- 89/90 lm/W system efficacy
- Continuous, flicker free dimming from 100% to 10%
- Communicates status and sensor inputs over the EcoSystem® digital link
- Low harmonic distortion throughout the entire dimming range
- 1.53/1.54/1.55 ballast efficacy factor
- Programmed rapid start design ensures full rated lamp life while dimming and cycling
- Integral sensor connection provides power for and responds to one occupancy sensor, one photo sensor, and one personal control input (infrared receiver or wall station)
- Protected from miswires of any input power to control lead, or from lamp leads to each other and/or ground
- 100% performance tested at factory
- End of lamp life protection circuitry ensures safe operation throughout entire lamp life
- Frequency of operation ensures that ballast does not interfere with infrared devices
- Ultra quiet operation
- 5800 lumens
- Without leads
- Lamps turn on to any dimmed level without flashing to full brightness
- 0.54 A at 120 VAC, 0.27 A at 240 VAC, 0.23 A at 277 VAC
- Ballasts maintain consistent light output for linear lamp lengths
- C22.2 File No. 74|FCC Part 18|NOM Certified|S Mark Certified|UL 935, CSA C22.2 No 74 Approved|ANSI C82.11|ANSI C62.41|ANSI/ESD S20.20
