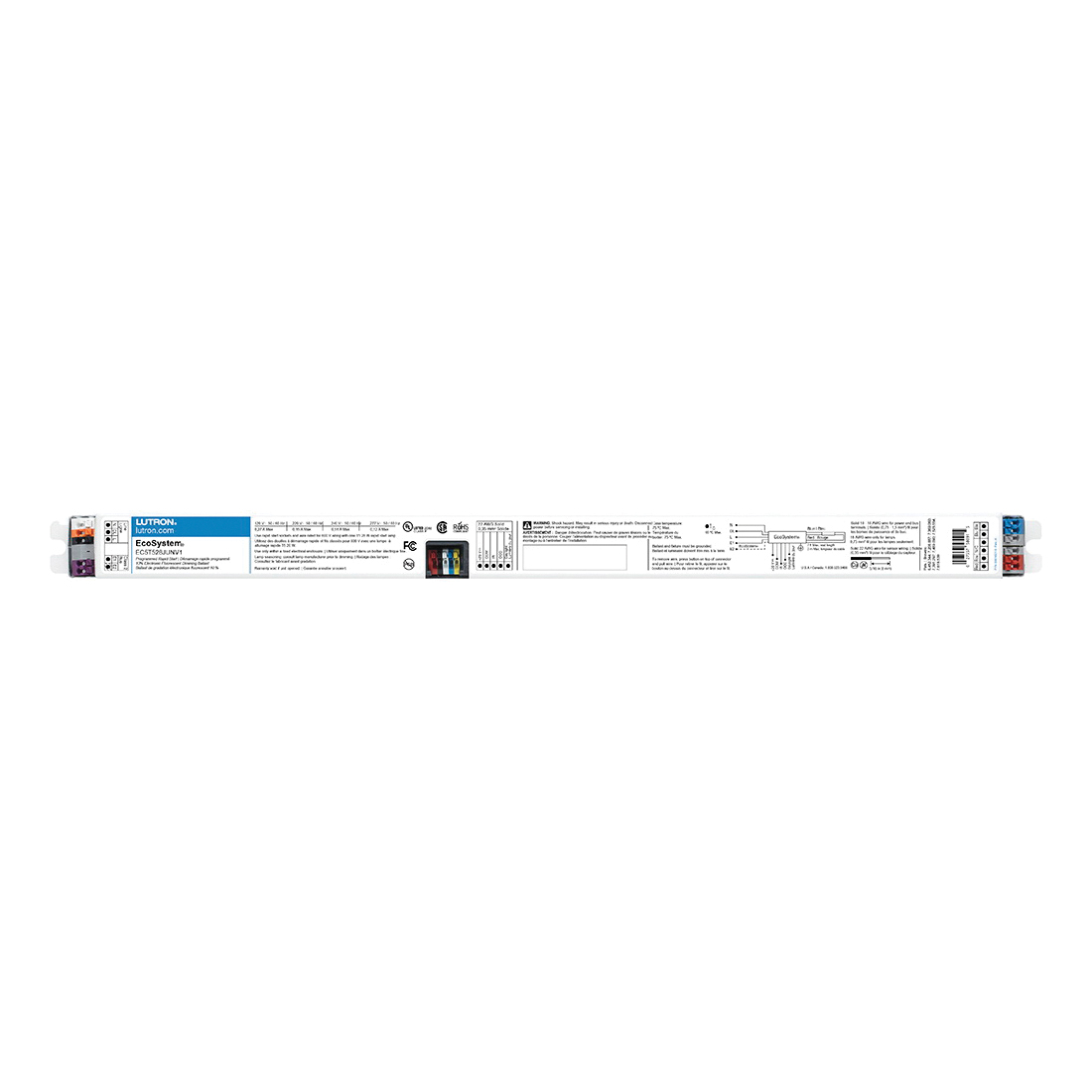

Lutron® EC5T528JUNV1 EcoSystem® 3-Wire 5-Control J-Type Case Universal Digital Dimming Ballast, T5 Lamp, 28 W Lamp, 120/240/277 VAC, Programmed/Rapid, 1 Ballast Factor
Sku #02755758091
MFG #EC5T528JUNV1
Attributes
| Type: | 3-Wire 5-Control J-Type Case Universal |
| Lamp Type: | T5 |
| Wattage: | 32.6/32.9 W |
| Series: | EcoSystem® |
| Lamp Wattage: | 28 W |
| Voltage Rating: | 120/240/277 VAC |
- UL 935|C22.2 File No. 74|ANSI C82.11|FCC Part 18|ANSI C62.41|ANSI/ESD S20.20|NOM Certified|S Mark Certified|UL Style 2576, UL 1685 Listed|CSA FT4 Certified|RoHS Compliant
- Non-volatile memory restores all ballast settings after power failure
- Continuous, flicker free dimming from 100% to 10%
- Communicates status and sensor inputs over the EcoSystem® digital link
- Integral sensor connection provides power for and responds to one occupancy sensor, one photo sensor and one personal control input (infrared receiver or wallstation)
- Low harmonic distortion throughout the entire dimming range
- Protected from miswires of any input power to control lead or from lamp leads to each other and/or ground
- J case type
- Programmed rapid start design ensures full rated lamp life while dimming and cycling
- 0.27 A at 120 VAC, 0.14 A at 240 VAC, 0.12 A at 277 VAC
- 100% performance tested at factory
- End of lamp life protection circuitry ensures safe operation throughout entire lamp life
- Frequency of operation ensures that ballast does not interfere with infrared devices
- Ultra quiet operation
- Without leads
- Ballasts maintain consistent light output for linear lamp lengths (e.g., 4 ft, 3 ft, 2 ft have same relative output)
- Lamps turn on to any dimmed level without flashing to full brightness
