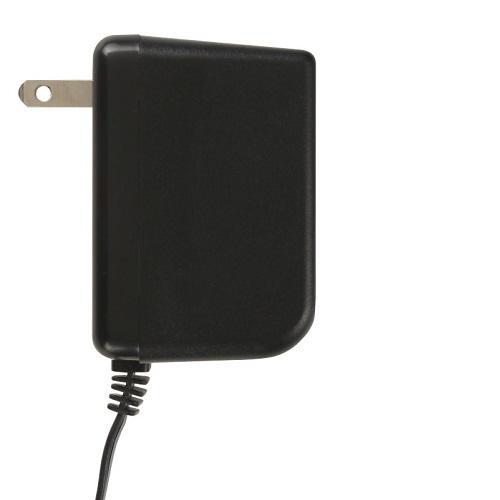

Lutron® GRAFIK Eye® GRX-12V DC Power Supply, 12 V DC, 0.8 A
Sku #02755731300
MFG #GRX-12VDC
Attributes
| Voltage Rating: | 12 V DC |
| Dimensions: | 2.77 in H x 2.22 in W x 1.91 in D |
| Amperage Rating: | 0.8 A |
| Country of Origin: | US |
- Must be class 2/PELV rated
- Must be rated for at least 50 mA per wall station on the link
- Must be a regulated supply
- 60 Hz frequency
- 9.5 W power consumption
- Provides power for up to 16 wall stations
- Connect the 12 VDC wire from the power supply to terminal 2 on all wall stations and control interfaces, do not connect this wire to any control units
- Connect the common wire to terminal 1 on all wall stations, control interfaces and control units
- Keep the distance from the external power supply and the sixteenth wall station less than 300 ft, with fewer wall stations, the allowable maximum distance may be greater consult Lutron®
- UL Listed|CSA|NOM Certified
- For used whenever more than three wall stations or control interfaces must be powered from a single control unit
