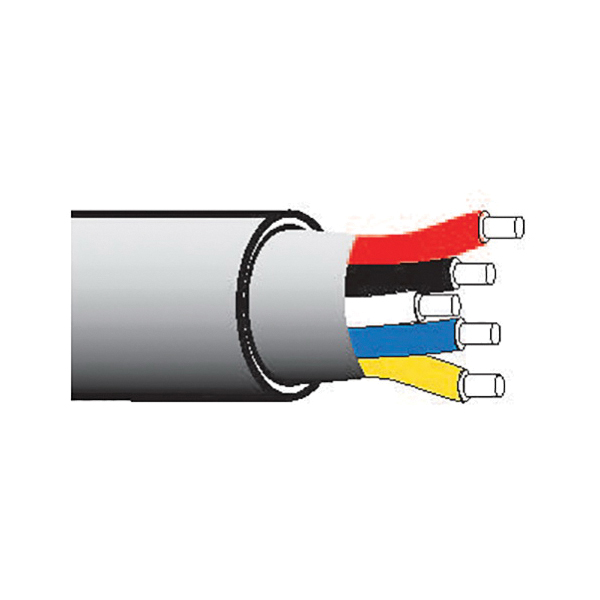

Lutron® C-PCBL-522S-CL-1 EcoSystem® Class 2 Sensor Cable, Spool Packaging, 300 V AC, (5) 22 AWG Bare Solid Copper Conductor, 1000 ft L
Sku #02755727131
MFG #C-PCBL-522S-CL-1
Attributes
| Type: | Class 2 |
| Packaging Type: | Spool |
| Amperage Rating: | 4 A |
| Series: | EcoSystem® |
| Voltage Rating: | 300 V AC |
| Number of Conductors: | 5 |
- For plenum spaces
- All external markings use white ink
- Each offering is spooled to 1000 ft and based upon industry standards of plus 10%, minus 10% on all shipments
- Overall aluminum-polymer foil shield, plus 24 AWG (0.25 sq-mm) copper drain wire
- All plenum cable is rated to a maximum of 300 VAC
- Internal conductors match EcoSystem® device terminal and lead color scheme
- Each conductor sized for direct connection to EcoSystem® ballast and module terminals
- CSA C22.2 File No. 214|UL Listed Type CL3P/CMP|cULus Listed FT-6|cUL Listed|UL 444|UL 13|UL FT-6|UL NFPA 262|RoHS Compliant
