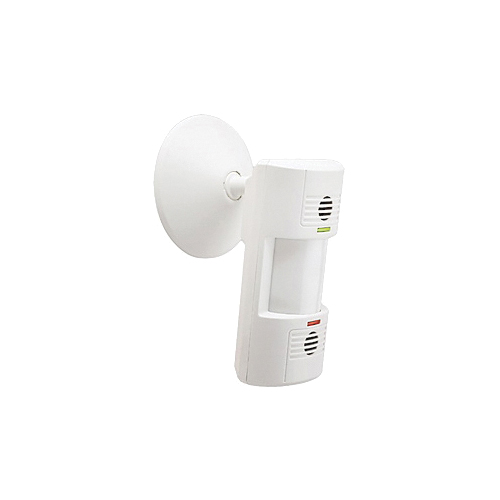

Lutron® LOS-WIR-WH LOS-W Occupancy Sensor, 20 to 24 V DC, Passive Infrared Sensor, 1600 sq-ft Coverage, 110 deg Viewing, Wall Mounting
Sku #02755721243
MFG #LOS-WIR-WH
Attributes
| Series: | LOS-W |
| Amperage Rating: | 33 mA |
| Coverage: | 1600 sq-ft |
| Voltage Rating: | 20 to 24 V DC |
| Sensor Type: | Passive Infrared |
| Viewing Angle: | 110 deg |
- Intercom/PA Systems, Sound/Audio Systems, Fire Alarm Systems and Commercial
- Features self-adaptive technology that eliminates the need for manual range adjustment
- After proper mounting, the sensors automatically adjust sensitivity and timing to prevent false-off and false-on conditions
- Can control other building systems such as HVAC or security systems
- Range of 1600 sq-ft if mounted at 8 to 12 ft from floor
- 8 second test mode to easily confirm proper operation
- Model with additional output (dry contact closure), non-volatile memory (saved changes are stored during loss of power)
- Integrate with Lutron® systems (no power pack needed) or function as stand alone controls using a Lutron® power pack
- 20-24 VDC, class 2 (PELV) low-voltage wiring, passive infrared (PIR) sensor with closure output
- 4 to 30 min (manual), 8 sec (test) time delay
- UL Listed|CSA/NEC/CEC Certified|CE Certified|RoHS Compliant
