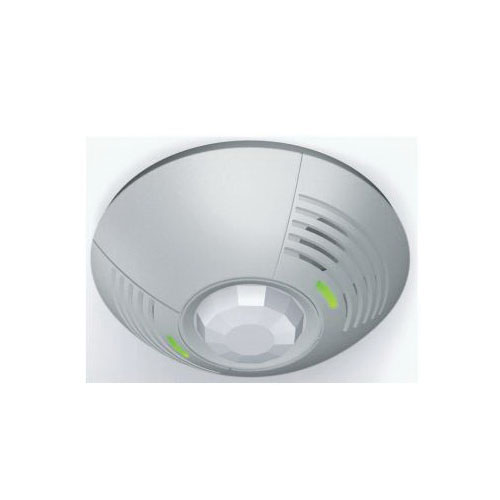

Lutron® LOS-CDT-1000R-WH LOS-CDT Occupancy Sensor, 20 to 24 V DC, Passive/Ultrasonic Infrared Sensor, 1000 sq-ft Coverage, 180 deg Viewing, Ceiling Mounting
Sku #02755721236
MFG #LOS-CDT-1000R-WH
Attributes
| Series: | LOS-CDT |
| Amperage Rating: | 33 mA |
| Coverage: | 1000 sq-ft |
| Voltage Rating: | 20 to 24 V DC |
| Sensor Type: | Passive/Ultrasonic Infrared |
| Viewing Angle: | 180 deg |
- Combines both ultrasonic (US) motion detection for maximum sensitivity and passive infrared (PIR) motion detection for false triggering immunity
- The self-adapting internal microprocessor analyzes the composite sum of both signals to eliminate time-consuming adjustments and callbacks found in non-intelligent sensors
- Intelligent, continually adapting sensor
- Ultrasonic (US) combined with passive infrared (PIR) sensing provide high sensitivity, high noise immunity and excellent false tripping immunity
- Suited for complex environments that are difficult to control with single technology sensors
- Snap locks to ceiling mounted cover plate
- Non-volatile memory, settings saved in protected memory are not lost during power outages
- 500 to 2000 sq-ft coverage when mounted on an 8 to 12 ft ceiling
- Affords choice of turning lights Off or dimming to a preset level in the unoccupied state when integrated with a Lutron® system
- Injection molded plastic
- https://www.youtube.com/watch?v=-wE-N6XBJss
- Indoor Application
- UL|cUL Listed
