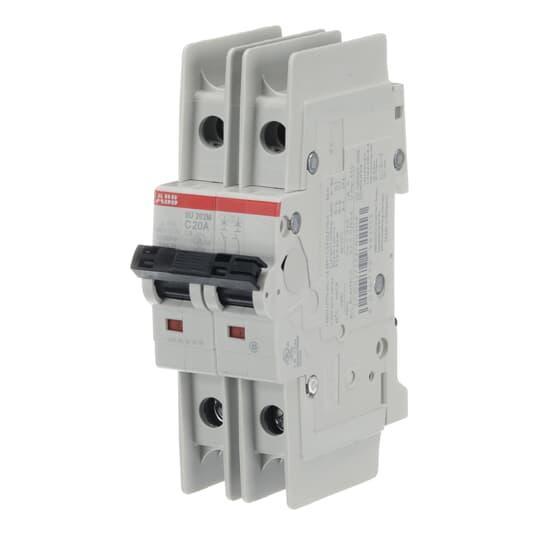

ABB SU202M-C20 SU200M High Performance Miniature Circuit Breaker, 277/480 VAC, 96 VDC, 20 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Sku #01677993111
MFG #SU202M-C20
Attributes
| Type: | High Performance |
| Voltage Rating: | 277 to 480 V AC/96 V DC |
| Frequency Rating: | 50/60 Hz |
| Series: | SU200M |
| Amperage Rating: | 20 A |
| Interrupt Rating: | 10 kA |
- Fast breaking time (2.3 to 2.5 m sec)
- Suitable for reverse feed (except for S200UDC)
- Failsafe bi-directional cylinder-lift screw terminal type
- 20000 cycle mechanical endurance
- 2.8 Nm tightening torque
- Current limiting according to UL 489
- High performance MCB provides compact supplementary, energy limiting, branch circuit protection
- Bus connection system
- Finger safe and multi-function terminals
- 25g/2 shocks/13 ms shock resistance, 5g, 20 cycles at 5 to 150 Hz with load 0.8 in vibrations resistance, 28 cycles environment with 55 deg c/90-96 % and 25 deg c/95-100 %, (400 VAC) 15 kA rated ultimate short circuit breaking capacity (ICU), (400 VAC) 11.3 kA rated service short circuit breaking capacity (ICS), III category overvoltage, 3 deg pollution , red on/green off contact position indication, 20000 cycle mechanical endurance, 2.8 N-m tightening torque
- 0.75 to 25 sq-mm flexible with ferrule, 0.75 to 25 sq-mm flexible, 0.75 to 35 sq-mm rigid, 0.75 to 35 sq-mm stranded connecting capacity
- TH35-7.5 (35 x 7.5 mm DIN rail acc to IEC 60715), TH35-15 (35 x 15 mm DIN rail acc to IEC 60715)
- IP40 enclosure with cover
- 18 to 4 AWG conductor, 18 to 8 AWG busbar
- RAL 7035 gray color
- Auxiliary contact
- https://youtu.be/DQ5NrwpQMD8
- For branch circuit protection
- CSA 22.2 No. 5 / IEC/EN 60947-2 / UL 489
