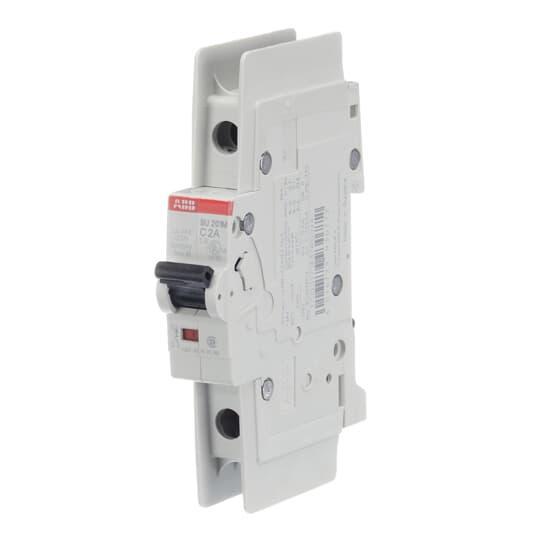

ABB SU201M-C2 SU200M Miniature Circuit Breaker, 277/480 VAC, 96 VDC, 2 A, 10 kA Interrupt, 1 Poles, Thermal Magnetic Trip
Sku #01677993077
MFG #SU201M-C2
Attributes
| Series: | SU200M |
| Amperage Rating: | 2 A |
| Interrupt Rating: | 10 kA |
| Voltage Rating: | 277 to 480 V AC/96 V DC |
| Frequency Rating: | 50/60 Hz |
| Trip Type: | Thermal Magnetic |
- Fast breaking time (2.3 to 2.5 m sec)
- Bus connection system
- Finger-safe and multi-function terminal
- Suitable for reverse feed (except for S200UDC)
- 25 g, 2-shocks, 13 m sec shock resistance, 5 g, 20 cycles at 5 to 150 Hz with load 0.8 in vibrations resistance
- Failsafe bi-directional cylinder-lift screw terminal type
- 0.75 to 25 sq-mm flexible with ferrule, 0.75 to 35 sq-mm rigid, 0.75 to 35 sq-mm stranded connecting capacity
- TH35-7.5 (35 x 7.5 mm DIN Rail), TH35-15 (35 x 15 mm DIN Rail) according to IEC 60715
- 18 to 4 AWG conductor, 18 to 8 AWG busbar
- 20000 cycle mechanical endurance
- 2.8 Nm tightening torque
- For branch circuit protection
- CSA 22.2 No. 5 / IEC/EN 60947-2 / UL 489
