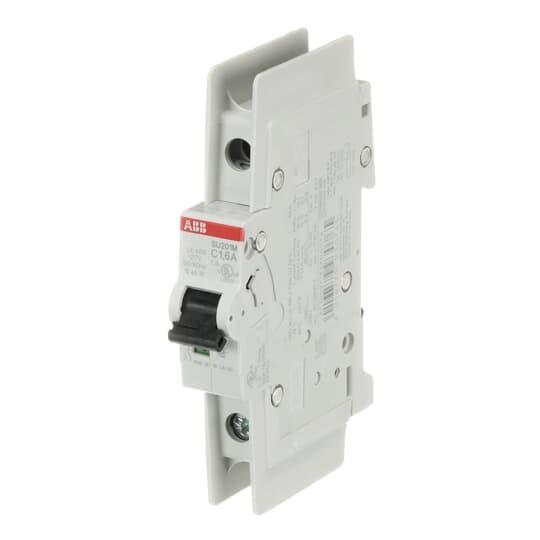

ABB SU201M-C1.6 SU200M High Performance Miniature Circuit Breaker, 277/480Y VAC, 48/96 VDC, 1.6 A, 10 kA Interrupt, 1 Poles, Thermal Magnetic Trip
Sku #01677993076
MFG #SU201M-C1.6
Attributes
| Type: | High Performance |
| Voltage Rating: | 277 to 480Y V AC/48 to 96 V DC |
| Frequency Rating: | 50/60 Hz |
| Series: | SU200M |
| Amperage Rating: | 1.6 A |
| Interrupt Rating: | 10 kA |
- CSA 22.2 No. 5 / IEC/EN 60947-2 / UL 489
- For branch circuit protection applications
- Suitable for reverse feed (except for S200UDC)
- High performance MCB provides compact supplementary, energy limiting and circuit protection
- Failsafe bi-directional cylinder-lift screw terminal type
- 20000 cycle mechanical endurance
- TH35-7.5 (35 x 7.5 mm DIN Rail), TH35-15 (35 x 15 mm DIN Rail) according to IEC 60715
- 0.75 to 25 sq-mm flexible with ferrule, 0.75 to 35 sq-mm rigid, 0.75 to 35 sq-mm stranded connecting capacity
- 18 to 4 AWG conductor, 18 to 8 AWG busbar
- Finger safe and multi-function terminals
- 2.8 Nm tightening torque
- Bus connection system
- Fast breaking time (2.3 to 2.5 m sec)
- 25 g, 2-shocks, 13 m sec shock resistance, 5 g, 20 cycles at 5 to 150 Hz with load 0.8 in vibrations resistance
