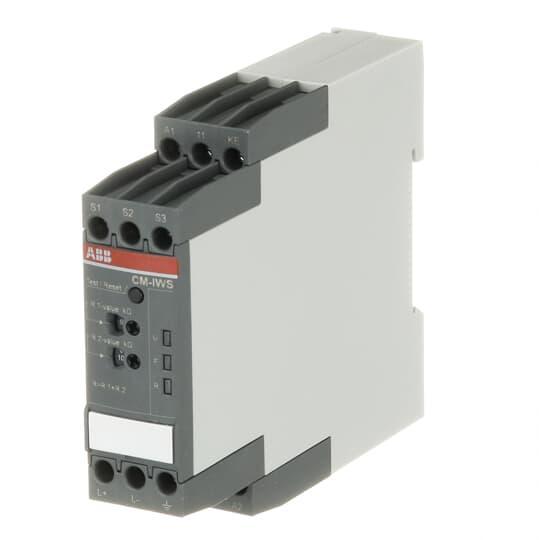

ABB 1SVR730660R0100 Insulation Monitoring Relay, 24 to 240 V AC/DC, 35 mA, 1 to 100 kOhm Insulation Resistance, 1CO Contact, 24 to 240 V AC/DC V Coil
Sku #01677985260
MFG #1SVR730660R0100
Attributes
| Voltage Rating: | 24 to 240 V AC/DC |
| Insulation Resistance Range: | 1 to 100 kOhm |
| Coil Voltage: | 24 to 240 V AC/DC |
| Amperage Rating: | 35 mA |
| Frequency Rating: | 15 to 400 Hz |
| Contact Configuration: | 1CO |
- 35 mA at 24 VDC, 17 mA at 115 VAC, 14 mA at 230 VAC
- 10 s max response time for pure AC system and 15 s max response time for DC system or AC system with connected rectifiers
- For ungrounded IT installations
- RoHS 2011/65/EU|CB Certified|CCC Certified|cULus 508 20120727-E140448|CE Certified|DNV GL Certified|EAC Certified|RMRS Approved|CCC Certified|CB Certified|CE Certified|cULus Listed|EAC Certified|RoHS Compliant|RMRS Certified
