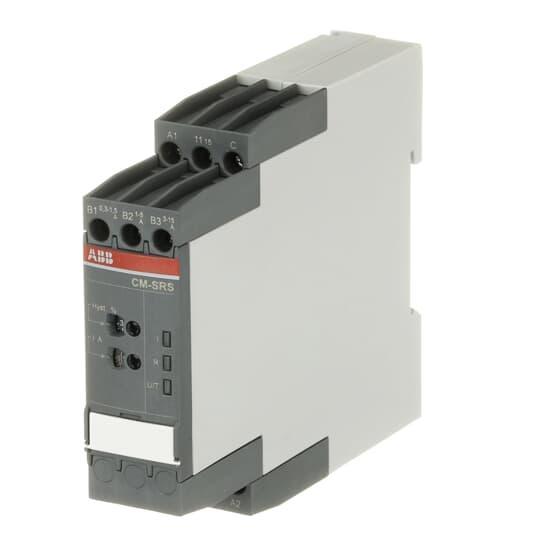

ABB 1SVR730840R0300 CM Series 1-Function Current Monitoring Relay, 24 to 240 V AC/DC, 0.3 to 15 A, 1CO SPDT Contact
Sku #01677985223
MFG #1SVR730840R0300
Attributes
| Type: | 1-Function |
| Voltage Rating: | 24 to 240 V AC/DC |
| Frequency Rating: | 50/60 Hz |
| Series: | CM Series |
| Amperage Rating: | 0.3 to 15 A |
| Contact Material: | AgNi |
- Suitable for railway applications
- Hysteresis adjustable from 3 to 30%
- 3 LED's for the indication of operational states
- Latching function configurable
- Threshold values for >U and/or
- Over or undercurrent monitoring configurable
- Screw terminal connection
- TRMS measuring principle
- Fixed hysteresis of 5 %
- 4 A at 230 VAC rated operational current AC-12
- ON or OFF-delay configurable
- Monitoring of DC and AC currents from 3 mA to 15 A
- Open or closed-circuit principle configurable
- One device includes 3 measuring ranges
- For single-phase AC/DC current monitoring
- BAA Compliant|CB Certified|CE Certified|CCC Certified|cULus Listed|DNV GL Certified|EAC Certified|RMRS Certified|RoHS Compliant|RoHS Compliant|UL 508|CAN/CSA C22.2 File No 14|GOST Certified|CCC Certified|CE Certified
