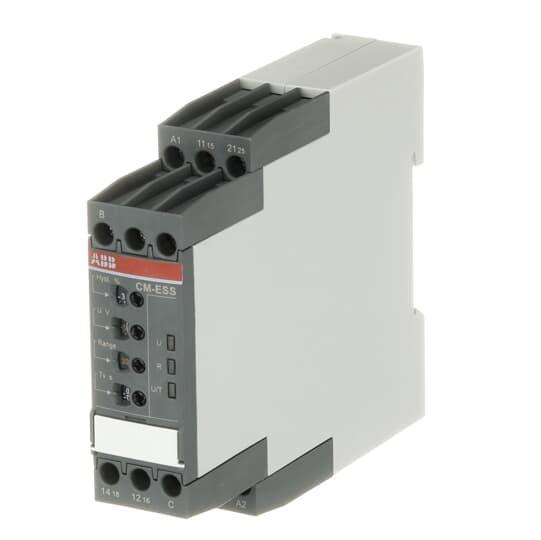

ABB 1SVR730830R0500 CM Series 1-Phase Voltage Monitoring Relay, 24 to 240 V AC/DC, 4 A, 2CO SPDT Contact
Sku #01677985217
MFG #1SVR730830R0500
Attributes
| Type: | 1-Phase |
| Voltage Rating: | 24 to 240 V AC/DC |
| Frequency Rating: | 50/60 Hz |
| Series: | CM Series |
| Amperage Rating: | 4 A |
| Contact Material: | AgNi |
- Suitable for railway applications
- 3 LED's for the indication of operational states
- Tool-free mounting on DIN rail as well as demounting
- Latching function configurable
- Over and undercurrent monitoring
- Threshold values for >U and/or
- Hysteresis adjustable (3 to 30%)
- 3 supply voltage versions
- Selectable over or undervoltage monitoring
- TRMS measuring principle
- Fixed hysteresis of 5 %
- 4 A at 230 VAC rated operational current AC-12
- ON or OFF-delay configurable
- Open or closed-circuit principle configurable
- Monitoring of DC and AC voltages (3 to 600 V)
- Precise adjustment by front face operating controls
- One device includes 4 measuring ranges
- For DC motor speed control, battery monitoring, monitoring of AC or DC supplies and monitoring of heating or lighting circuits
- RoHS 2011/65/EC|CAN/CSA C22.2 No. 14|EN 50178|EN 50581|EN 50155|EN 45545-2|IEC 60571|IEC/EN 60255-27|IEC/EN 61000-6-2|IEC/EN 61000-6-3|UL 508|cULus Listed|EAC Certified|CCC Certified|RMRS Approved|CE Certified|RCM Certified|UL 94 V-0 Flammability Rating|NF F 16-101/102|BAA Compliant|CB Certified|CE Certified|CCC Certified|cULus Listed|DNV GL Certified|EAC Certified|RMRS Certified|RoHS Compliant|UL 508, CAN/CSA C22.2 No.14|RCM Certified
