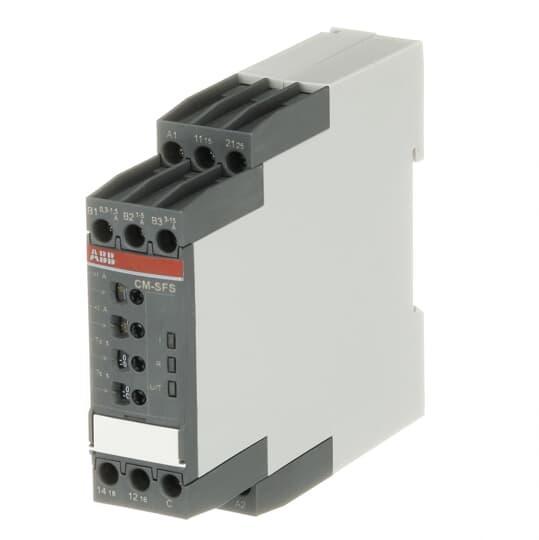

ABB 1SVR730760R0500 CM Series 1-Phase Current Monitoring Relay, 24 to 240 V AC/DC, 0.1 to 15 A, 2CO SPDT Contact, 0/0.1 to 30 s Trip Delay
Sku #01677985214
MFG #1SVR730760R0500
Attributes
| Type: | 1-Phase |
| Voltage Rating: | 24 to 240 V AC/DC |
| Frequency Rating: | 50/60 Hz |
| Series: | CM Series |
| Amperage Rating: | 0.1 to 15 A |
| Contact Material: | AgNi |
- For single-phase AC/DC current monitoring
- Suitable for railway applications
- 3 LED's for the indication of operational states
- Tool-free mounting on DIN rail as well as demounting
- Tripping delay TV adjustable (0 s, 0.1 to 30 s)
- Latching function configurable
- Over and undercurrent monitoring
- Threshold values for >U and/or
- TRMS measuring principle
- Fixed hysteresis of 5 %
- 4 A at 230 VAC rated operational current AC-12
- Monitoring of DC and AC currents from 3 mA to 15 A
- ON or OFF delay configurable
- Housing material for highest fire protection classification UL 94 V-0
- Open or closed-circuit principle configurable
- One device includes 3 measuring ranges
- Precise adjustment by front-face operating controls
- RoHS Compliant|UL 508|CAN/CSA C22.2 File No 14|GOST Certified|CCC Certified|CE Certified|EAC Certified|CB Certified|CE Certified|CCC Certified|cULus Listed|DNV GL Certified|EAC Certified|RMRS Certified|RoHS Compliant
