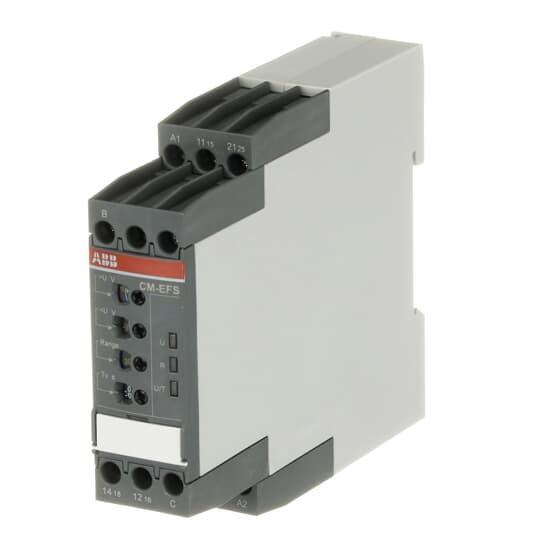

ABB 1SVR730750R0400 1-Phase Current and Voltage Monitoring Relay, 24 to 240 VAC/VDC, 4 A, SPDT Contact
Sku #01677985212
MFG #1SVR730750R0400
Attributes
| Type: | 1-Phase |
| Amperage Rating: | 4 A |
| Contact Configuration: | SPDT |
| Voltage Rating: | 24 to 240 V AC/DC |
| Frequency Rating: | 50/60 Hz |
| Mounting Type: | DIN Rail |
- IP50 housing, IP20 terminal enclosure
- 4 A at 230 VAC/24 VDC, 3 A at 230 VAC, 2 A at 24 VDC rated operational current
- Window current monitoring
- 30000000 mechanical, 100000 electrical operating cycle
- -20 to 60 deg C operating temperature rating
- UL 508|cULus Listed|CAN/CSA C22.2 No.14|CE Certified|IEC/EN 60255-27, 61000-6-2, 61000-6-3, EN 50178, 50581|RoHS Compliant|RoHS Compliant|cULus Listed|CB|CCC|CE|EAC|GL|RMRS Certified
- For window current monitoring
