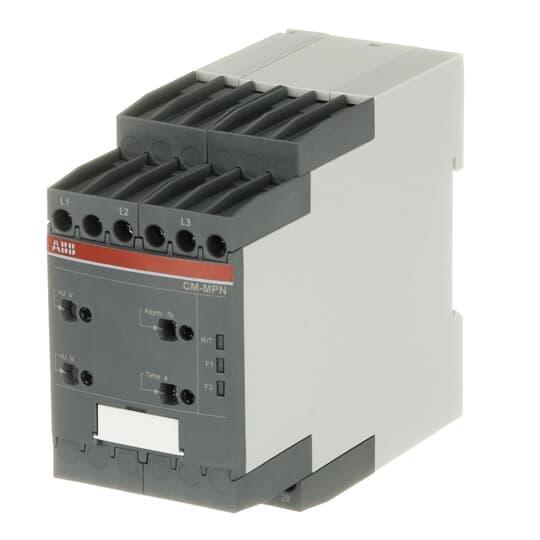

ABB 1SVR750488R8300 3-Phase Multi-Functional Monitoring Relay With Selectable Trip Delay, 450 to 720 V AC, 2 to 4 A, 2CO SPDT Contact, 450 to 720 V AC V Coil
Sku #01677985192
MFG #1SVR750488R8300
Attributes
| Type: | 3-Phase Multi-Functional |
| Amperage Rating: | 2 to 4 A |
| Coil Voltage: | 450 to 720 V AC |
| Voltage Rating: | 450 to 720 V AC |
| Frequency Rating: | 50/60 Hz |
| Contact Material: | Silver Nickel |
- CAN/CSA C22.2 File No 14|UL 508|CAN/CSA C22.2 No. 14|EN 50581|IEC/EN 60255-27, 61000-6-2, 61000-6-3|UL 508|CB Certified|CCC Certified|cULus 508 20120829-E140448|CE Certified|DNV GL Certified|EAC Certified|RMRS Approved
- For protection of sensitive three phase loads, protection against phase unbalance, phase loss and phase reversal, overvoltage and undervoltage
- 3 x 600 to 720 VAC overvoltage/3 x 450 to 570 VAC undervoltage
- Monitoring of three phase mains for phase sequence (can be switched off), phase failure, over and undervoltage as well as phase unbalance
- ON delayed or OFF delayed tripping delay selectable
- TRMS measuring principle
- Housing material for highest fire protection classification UL 94 V-0
- Tool-free mounting on DIN rail as well as demounting
- 3 LEDs for indication of operational states
- Powered by the measuring circuit
- Automatic phase sequence correction configurable
- Threshold values for over and undervoltage as well as phase unbalance are adjustable as absolute values
- Precise adjustment by front-face operating controls
- Without neutral connection
- Tripping delay TV can be adjusted or switched off by means of a logarithmic scale (0 s, 0.1 to 30 s)
