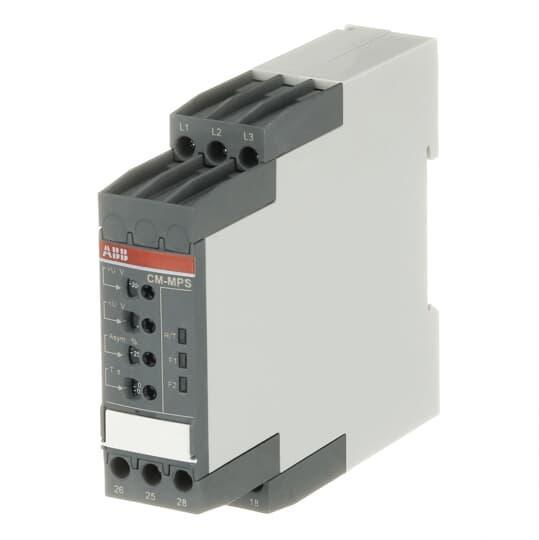

ABB 1SVR730884R1300 3-Phase Multi-Functional Monitoring Relay With Selectable Trip Delay, 160 to 300 V AC, 2 to 4 A, 2CO SPDT Contact, 160 to 300 V AC V Coil
Sku #01677985185
MFG #1SVR730884R1300
Attributes
| Type: | 3-Phase Multi-Functional |
| Amperage Rating: | 2 to 4 A |
| Coil Voltage: | 160 to 300 V AC |
| Voltage Rating: | 160 to 300 V AC |
| Frequency Rating: | 50/60 Hz |
| Contact Configuration: | 2CO SPDT |
- -25 to 60 deg C operating temperature
- Without neutral connection
- Protects against phase unbalance, phase loss and phase reversal, overvoltage and under voltage
- RoHS 2011/65/EU|CAN/CSA C22.2 No. 14|EN 50581|IEC/EN 60255-27, 61000-6-2, 61000-6-3|UL 508|CB Certified|CCC Certified|cULus 508 20120829-E140448|CE Certified|DNV GL Certified|EAC Certified|RMRS Approved|UL/cULus Listed|CSA Certified|EAC Approved|RoHS Compliant
- For protection of sensitive three phase loads, protection against phase unbalance, phase loss and phase reversal, overvoltage and undervoltage
