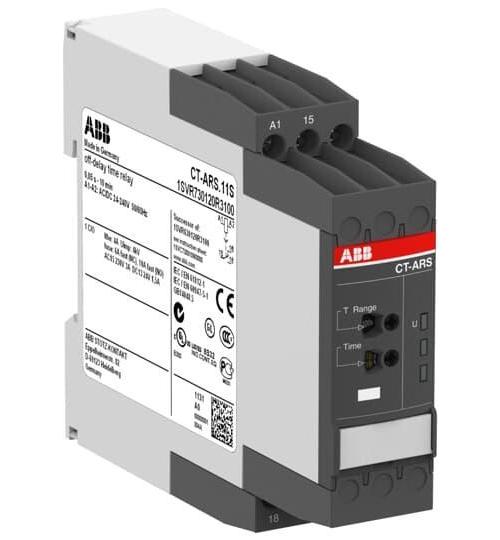

ABB 1SVR730120R3100 Type CT-ARS.11S OFF-Delayed High Performance Electronic Timer Relay, 0.05 s to 10 min Setting, 24 to 240 VAC/VDC, 1CO 1 Form C SPDT Contact
Sku #01677985148
MFG #1SVR730120R3100
Attributes
| Type: | Type CT-ARS.11S OFF-Delayed High Performance |
| Voltage Rating: | 24 to 240 V AC/DC |
| Contact Form: | 1CO 1 Form C SPDT |
| Operation Mode: | 1-Function |
| Amperage Rating: | 1.5/3/4 A |
| Time Setting: | 0.05 s to 10 min |
- Precise adjustment by front-face operating controls
- Housing material for highest fire protection classification UL 94 V-0
- Tool-free mounting on DIN rail as well as demounting
- 1 LED for the indication of operational states
- Without auxiliary voltage
- 7 time ranges (0.05 s to 10 min)
- Screw connection technology or Easy Connect technology available
- For use in industrial and general timing applications
- RoHS Compliant|UL 94 V-0 Flammability Rating|EN/IEC 61812-1|EMC 2014/30/EU|RoHS 2011/65/EU|Low Voltage Directive 2014/35/EU|UL 508|CAN/CSA C22.2 No. 14|EAC Approved|RMRS Certified|C-Tick Certified|EN 50581|cULus Listed
