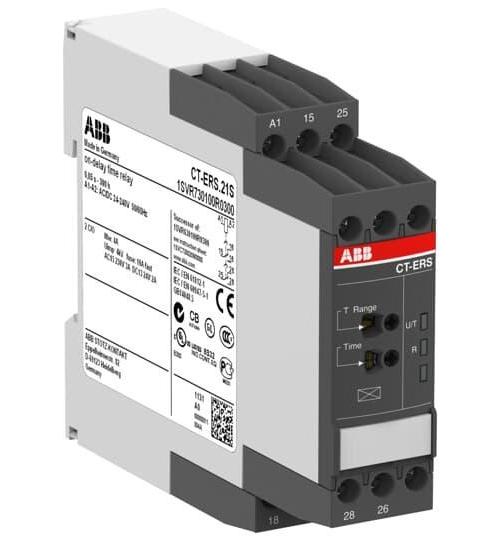

ABB 1SVR730100R0300 CT-S Type CT-ERS.21S ON-Delayed High Performance Electronic Timer Relay, 0.05 s to 300 hr Setting, 24 to 240 V AC/DC, 2CO 2 Form C SPDT Contact, 1 Poles
Sku #01677985144
MFG #1SVR730100R0300
Attributes
| Type: | Type CT-ERS.21S ON-Delayed High Performance |
| Operation Mode: | 1-Function |
| Amperage Rating: | 2/3/4 A |
| Series: | CT-S |
| Voltage Rating: | 24 to 240 V AC/DC |
| Number of Poles: | 1 |
- Precise adjustment by front-face operating controls
- Screw connection technology or Easy Connect technology available
- Housing material for highest fire protection classification UL 94 V-0
- Tool-free mounting on DIN rail as well as demounting
- 2 LEDs for the indication of operational states
- 10 time ranges (0.05 s to 300 hr)
- RoHS Compliant|UL 94 V-0 Flammability Rating|EN/IEC 61812-1|EMC 2014/30/EU|RoHS 2011/65/EU|Low Voltage Directive 2014/35/EU|UL 508|CAN/CSA C22.2 No. 14|GL Listed|EAC Approved|CCC Certified|RMRS Certified|CE Certified|RCM Marked|cULus Listed|UL Listed
- For use in industrial and general timing applications
