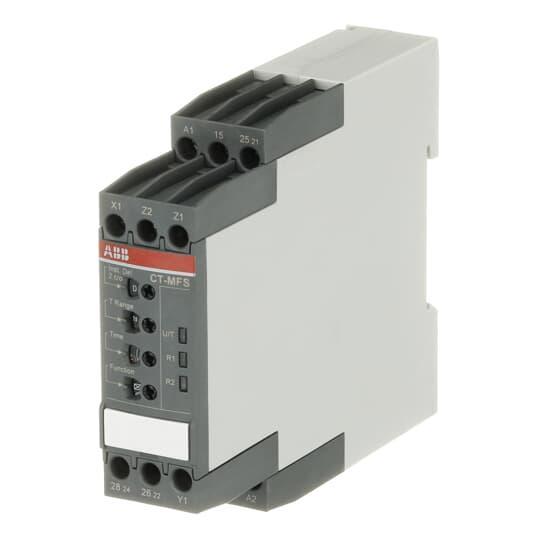

ABB 1SVR730010R0200 CT-S Multi-Function Electronic Time Relay, 0.05 s to 300 hr Setting, 24 to 240 V AC/DC, 2CO 2 Form C SPDT Contact, 1 Poles
Sku #01677985136
MFG #1SVR730010R0200
Attributes
| Type: | Multi-Function |
| Voltage Rating: | 24 to 240 V AC/DC |
| Number of Poles: | 1 |
| Series: | CT-S |
| Amperage Rating: | 4 A |
| Contact Form: | 2CO 2 Form C SPDT |
- 300 VAC maximum operating voltage
- 8 mm wire stripping length
- 12 VAC/10 mA minimum switching capacity
- 50/60 Hz rated frequency
- Screw terminal
- AC-12 100,000 cycle electrical durability
- Selectable timing functions - ON delay, Off delay, recycling, interval ON, trailing edge interval, flasher ON or Off starting, single shot, star-delta, On-Off no delay
- 0.6/0.8 N-m tightening torque
- UL 508|cUL Listed|CAN/CSA C22.2 No.14|CE Certified|EN 50581|IEC/EN 61812-1|RoHS Compliant|CAN/CSA Certified|IEC/EN 61812-1|UL Listed|CE Certified|RoHS Compliant|cUL Listed
- For use in applications where the timing function must be selected for the applications
