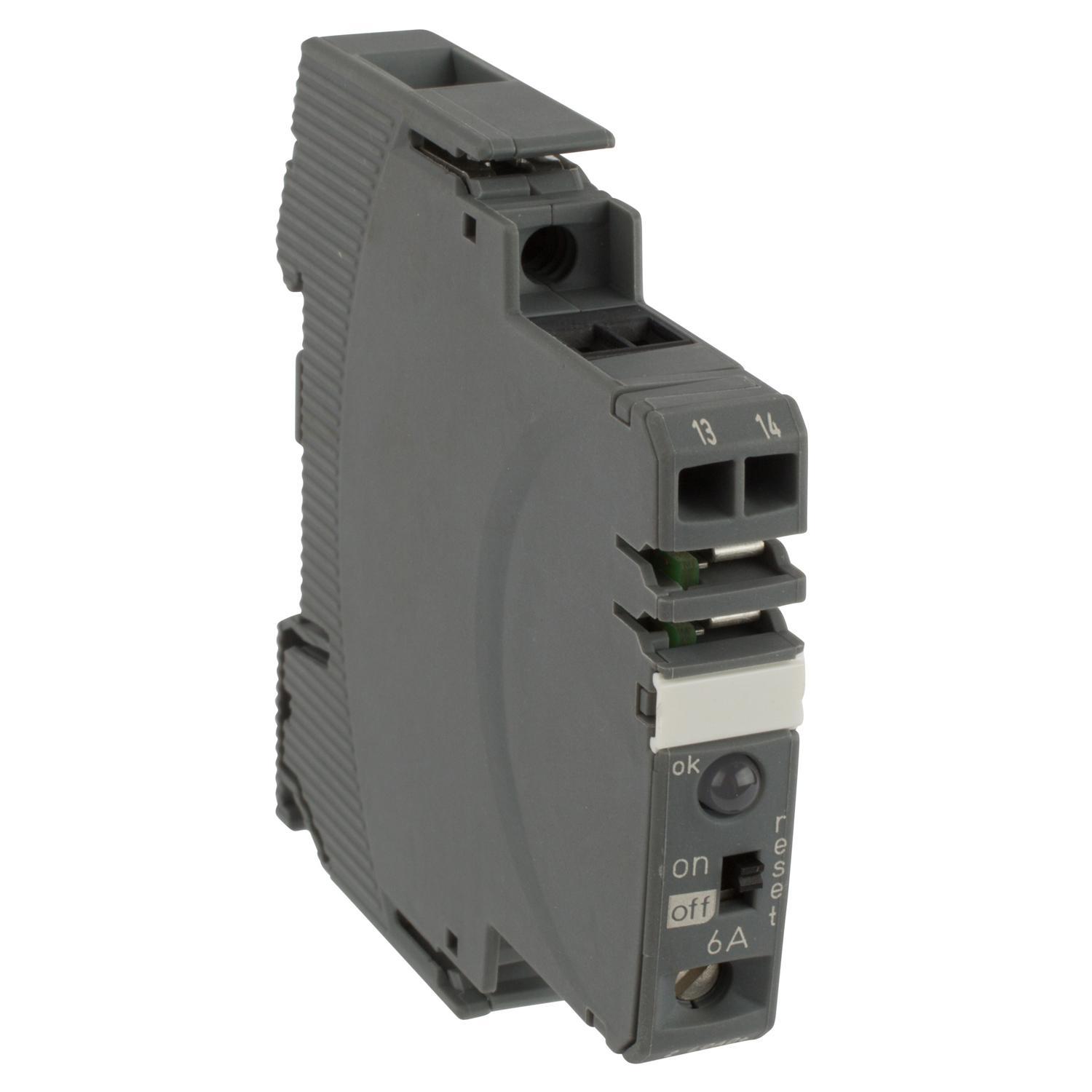

ABB EPD24-TB-101-6A Electronic System Pro M Compact Protection Device, 24 VDC, 6 A
Sku #01677983006
MFG #EPD24-TB-101-6A
Attributes
| Type: | Electronic |
| Amperage Rating: | 6 A |
| Temperature Rating: | 25 deg C |
| Voltage Rating: | 24 V DC |
| Mounting Type: | DIN Rail |
| Dimensions: | 12.5 mm W x 83 mm D x 80 mm H |
- For DC load circuits and load side of 24 VDC switch mode power supplies
- Selective load protection, one electronic tripping characteristic
- Integral fail safe element adjusted to current rating
- Width per unit only 12.5 mm
- Rail mounting
- Easy wiring through busbar LINE+ and 0 V as well as signal bars
- Clear status and failure indication through LED and integrated auxiliary contact
- Active current limitation for safe connection of capacitive loads up to 20000 micro F and on overload/short circuit
- Reliable overload disconnection with 1.1 x IN plus
- Manual ON/OFF button
- CSA Certified|UL Listed|UL 2367|UL 1604 (Class I, Division 2, Groups A, B, C, D)|UL 508|CSA C22.2 No. 213 (Class I, Division 2)
