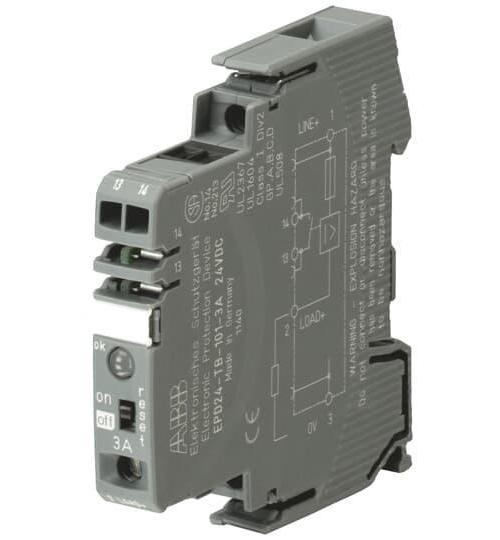

ABB EPD24-TB-101-3A Electronic Protection Device With Signal Output, 24 V DC, DIN Rail Mount
Sku #01677983002
MFG #EPD24-TB-101-3A
Attributes
| Type: | Electronic |
| Mounting Type: | DIN Rail |
| Specifications: | 3 A |
| Voltage Input Range: | 24 V DC |
| Suitable For Use With: | Load Circuit, Switch Mode Power Supplies |
| Material: | Polymer |
- CE Certified|UL 508/2367/1604|UL File No. E339236/E339238/E149922|Class I Division 2 Groups A B C D|CSA C22.2 No. 14|CSA 142 File No. 2305929 213 Class I Division 2|CE Certified|CSA Certified|UL Listed
- Without physical isolation in the event of a failure, signal input
- Reliable overload disconnection with 1.1 x IN plus
- Rail mounting with auxiliary contact and slot for signal bars
- Integral fail safe element adjusted to current rating
- Width per unit only 12.5 mm
- Selective load protection, one electronic tripping characteristic
- Active current limitation for safe connection of capacitive loads up to 20000 uF and on overload/short circuit
- Manual ON/OFF button
- Clear status and failure indication through LED and integrated auxiliary contact
- Easy wiring through busbar LINE+ and 0 V as well as signal bars
