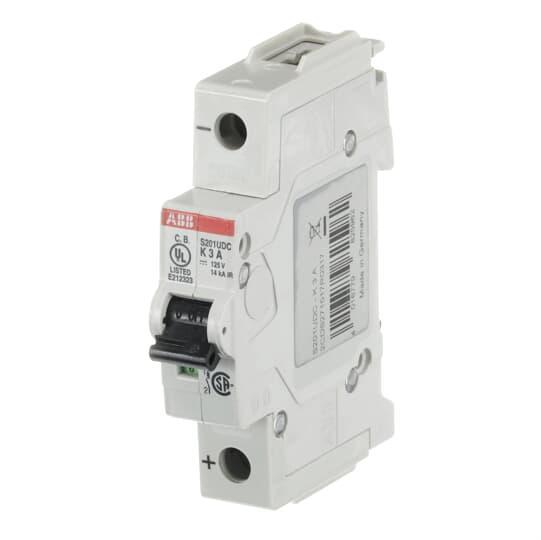

ABB System pro M compact® S201UDC-K3 S200UDC High Performance Miniature Circuit Breaker, 60/125 VDC, 3 A, 14 kA Interrupt, 1 Poles, Thermal Magnetic Trip
Sku #01677982596
MFG #S201UDC-K3
Attributes
| Type: | High Performance |
| Voltage Rating: | 60/125 V DC |
| Power Rating: | 1.9 W |
| Series: | S200UDC |
| Amperage Rating: | 3 A |
| Frequency Rating: | 50/60 Hz |
- High performance MCB provides compact supplementary, energy limiting and circuit protection
- Current limiting
- Fast breaking time
- Bus connection system
- Suitable for reverse feed applications
- For use with inductive loads
- Screw terminal type - cable clamp
- Actuator type - Insulation group II, black, sealable
- 8 to 12 A magnetic and 1.05 to 1.2 A thermal
- 18 to 4 AWG conductor, 18 to 8 AWG busbar
- Finger-safe and multi-function terminals
- Auxiliary contact
- UL 489|UL File No. E212323|VDE 0660|IEC 60947-2
- For allowing higher in-rush current during system start-up example motors and transformer applications
