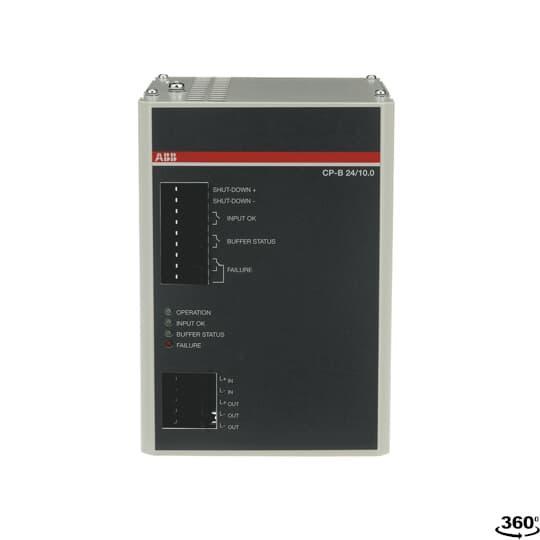

ABB 1SVR427060R1000 Type CP-B 1-Phase Power Supply, 24 V DC Input, 24 V DC Output, 240 W Power Rating, 10 A, DIN Rail Mount
Sku #01677978259
MFG #1SVR427060R1000
Attributes
| Type: | Type CP-B 1-Phase |
| Output Voltage: | 24 V DC |
| Amperage Rating: | 10 A |
| Input Voltage: | 24 V DC |
| Power Rating: | 240 W |
| Mounting Type: | DIN Rail |
- Power reserve up to 50%
- 1 control signal input for specifically switch off, 'SHUT-DOWN
- Maintenance-free
- Temperature-resistant
- 2 relay contacts, normally open, 'INPUT OK' and 'BUFFER STATUS' status signal
- Typical charging time <134 s at 100% load current
- Expandable with up to 2 extension modules CP-B EXT.2
- Buffer module for supporting the supply system in case of mains failure
- 1 relay contact, change over, 'FAILURE' status signal
- 4 LED's for indication of operational states
- No deep discharge
- For applications where power loss buffers are used
- IEC/EN 662040-2|CAN/CSA C22.2 No. 107.1|EN 50178/50581/55011|IEC/EN 60950-1|IEC/EN 61000-6-2|IEC/EN 61000-6-4|IEC/EN 62040-2|UL 508|cUL Listed|CE Certified|EAC Certified|BAA Compliant|CE Certified|CAN/CSA C22.2 No.107.1|cUL Listed|EAC Certified|EN 50178|EN 50581|EN 55011|IEC/EN 60950-1|IEC/EN 61000-6-2|IEC/EN 61000-6-4|IEC/EN 62040-2|UL 508
