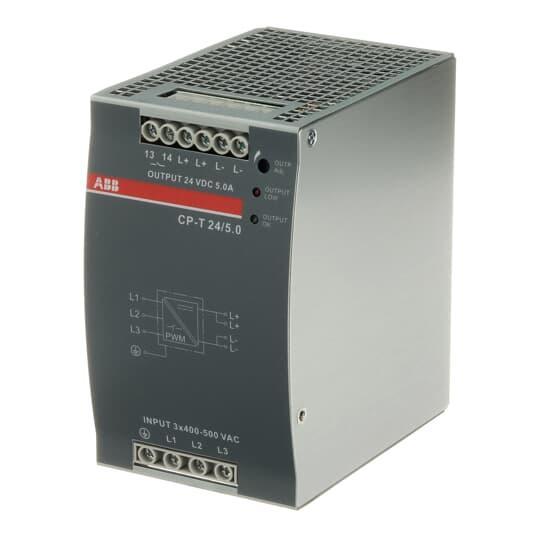

ABB 1SVR427054R0000 CP-T 3-Phase Power Supply, 340 to 575 V AC/480 to 820 V DC Input, 24 VDC Output, 120 W Power Rating, 5 A, DIN Rail Mount
Sku #01677969786
MFG #1SVR427054R0000
Attributes
| Type: | 3-Phase |
| Input Voltage: | 340 to 575 V AC/480 to 820 V DC |
| Power Rating: | 120 W |
| Series: | CP-T |
| Output Voltage: | 24 V DC |
| Amperage Rating: | 5 A |
- Integrated input fuse
- Power reserve up to 50%
- For applications that require reliable 24 VDC at 5 A power supply
- Low power dissipation and low heating
- Signaling contact 13-14 (solid-state) for output voltage OK
- 100% duty time
- Free convection cooling (no forced cooling with ventilators)
- Open circuit, overload and short circuit stable
- LED's for status indication
- Output voltage adjustable via front face rotary potentiometer output adjust
- Ambient temperature range during operation -40 to 70 deg C
- High efficiency of up to 89%
- For applications that require reliable 24 VDC at 5 A power supply
- IEC/EN 60950-1/61000-6-2/61000-6-3|UL 508|ANSI/ISA-12.12|CAN/CSA C22.2 No. 107.1/C22.2 No. 213/C22.2 No. 60950|cULus Listed|IEC/EN 60950-1/61000-6-2/61000-6-3|UL 508/60950/1310|cUL Listed|CAN/CSA C22.2 No. 213|223|107.1|60950|UL Recognized|CE Certified
