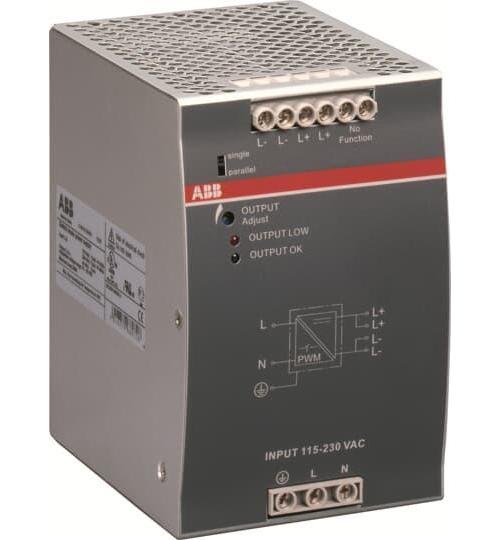

ABB 1SVR427034R2000 Type CP-E 1-Phase Switch Mode Power Supply, 115/230 V AC, 210 to 375 V DC Input, 48 VDC Output, 240 W Power Rating, 5 A, DIN Rail Mounting
Sku #01677966972
MFG #1SVR427034R2000
Attributes
| Type: | Type CP-E 1-Phase |
| Output Voltage: | 48 V DC |
| Amperage Rating: | 5 A |
| Input Voltage: | 115/230 V AC, 210 to 375 V DC |
| Power Rating: | 240 W |
| Frequency Rating: | 47 to 63 Hz |
- For applications that require cost effective 48 VDC at 5 A power supply
- Output voltage adjustable via front face rotary potentiometer OUTPUT Adjust
- Power reserve up to 50%
- 100 to 240 VAC (85 to 264 VAC, 90 to 375 VDC) wide range input
- Typical efficiency of 89%
- Low power dissipation and low heating
- Free convection cooling (no forced cooling with ventilators)
- Ambient temperature range during operation -40 to 70 deg C
- Open circuit, overload and short circuit stable
- Integrated input fuse
- LEDs for status indication
- Supply range 115/230 VAC (90 to 132 VAC, 180 to 264 VAC, 210 to 375 VDC), auto select
- UL 1310|ANSI/ISA-12.12|CAN/CSA C22.2 No. 107.1|EN 50581|IEC/EN 60950-1|IEC/EN 61000-6-2|UL 508|UL 60950|CCC Certified|cUL 508 File No. E174460|cUL Recognised|ANSI Certified
