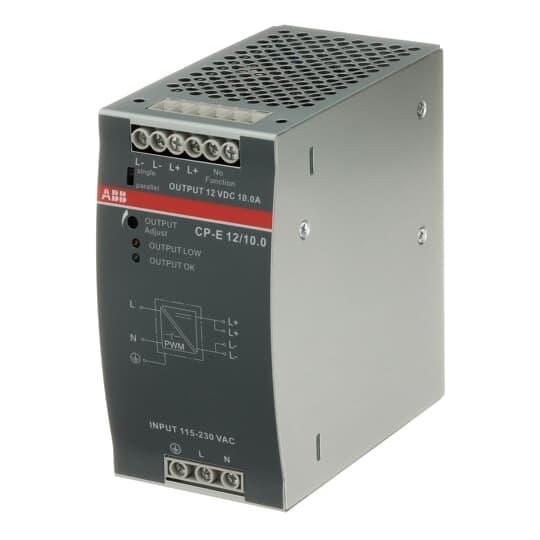

ABB 1SVR427035R1000 CP-E Switch Mode Power Supply, 90 to 132/180 to 264 V AC/210 to 375 V DC Input, 12 VDC Output, 120 W Power Rating, 10 A, DIN Rail Mount
Sku #01677966971
MFG #1SVR427035R1000
Attributes
| Type: | Switch Mode |
| Input Voltage: | 90 to 132/180 to 264 V AC/210 to 375 V DC |
| Power Rating: | 120 W |
| Series: | CP-E |
| Output Voltage: | 12 V DC |
| Amperage Rating: | 10 A |
- Integrated input fuse
- Power reserve up to 50%
- Ambient temperature range during operation -35 to 70 deg C
- 143 W typical power consumption
- Low power dissipation and low heating
- LEDs for status indication
- 100% duty time
- Output voltage adjustable via front face rotary potentiometer output adjust
- Free convection cooling (no forced cooling with ventilators)
- Open circuit, overload and short circuit stable
- Typical efficiency of 84%
- For applications that require cost effective 12 VDC at 10 A power supply
- 24 A 115 VAC 48 A 230 VAC inrush current limiting
- IEC/EN 60950-1/61000-6-2/61000-6-3|UL 508/60950/1310|cUL Listed|CAN/CSA C22.2 No. 213|223|107.1|60950|UL Recognized|CE Certified|IEC/EN 60950-1|IEC/EN 61000-6-2|IEC/EN 61000-6-3|UL 508/60950|ANSI/ISA-12.12|CAN/CSA C22.2 No. 107.1 1|CAN/CSA C22.2 No 213|CSA C22.2 No.60950|EAC Approved|CCC Certified|CE Certified|RCM Certified
- Used in high fluctuating networks and battery powered plants
