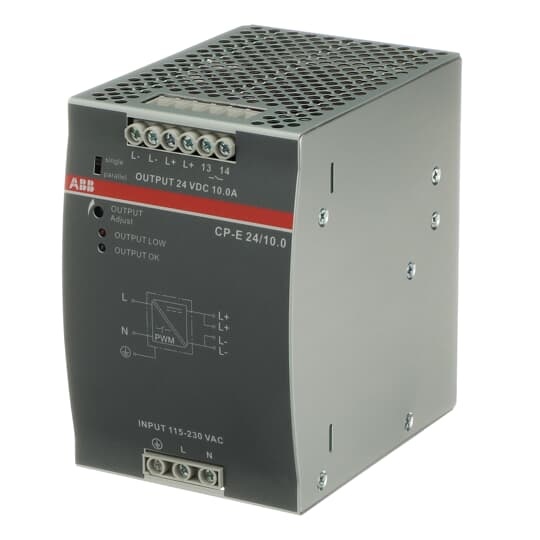

ABB 1SVR427035R0000 CP-E 1-Phase Power Supply, 90 to 132/180 to 264 V AC/210 to 375 V DC Input, 24 VDC Output, 240 W Power Rating, 10 A, DIN Rail Mount

Sku #01677966969

MFG #1SVR427035R0000

Attributes

Type:	1-Phase
Input Voltage:	90 to 132/180 to 264 V AC/210 to 375 V DC
Power Rating:	240 W

Series:	CP-E
Output Voltage:	24 V DC
Amperage Rating:	10 A

For applications that require cost effective 24 VDC at 10 A power supply

Integrated input fuse
Power reserve up to 50%
Low power dissipation and low heating
Typical efficiency of 89%
Signaling contact 13-14 (solid-state) for output voltage OK
100% duty time
Free convection cooling (no forced cooling with ventilators)
Open circuit, overload and short circuit stable
LED's for status indication
Output voltage adjustable via front face rotary potentiometer output adjust
Ambient temperature range during operation -40 to 70 deg C
For applications that require cost effective 24 VDC at 10 A power supply
