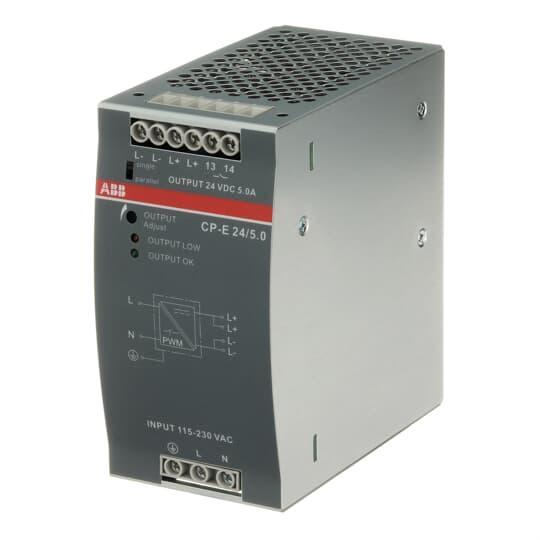

ABB 1SVR427034R0000 CP-E Switch Mode Power Supply, 90 to 132/180 to 264 V AC/210 to 375 V DC Input, 24 VDC Output, 120 W Power Rating, 5 A, DIN Rail Mount

Sku #01677966968

MFG #1SVR427034R0000

Attributes

Type:	Switch Mode
Input Voltage:	90 to 132/180 to 264 V AC/210 to 375 V DC
Power Rating:	120 W

Series:	CP-E
Output Voltage:	24 V DC
Amperage Rating:	5 A

Integrated input fuse
140 W typical power consumption
Power reserve up to 50%
Ambient temperature range during operation -35 to 70 deg C
Low power dissipation and low heating
Signaling contact 13-14 (solid-state) for output voltage OK
100% duty time
Typical efficiency of 86%
Free convection cooling (no forced cooling with ventilators)
Open circuit, overload and short circuit stable
For applications that require cost effective 24 VDC at 5 A power supply
LED's for status indication
Output voltage adjustable via front face rotary potentiometer output adjust
24 A 115 VAC 48 A 230 VAC inrush current limiting

For applications that require cost effective 24 VDC at 5 A power supply
