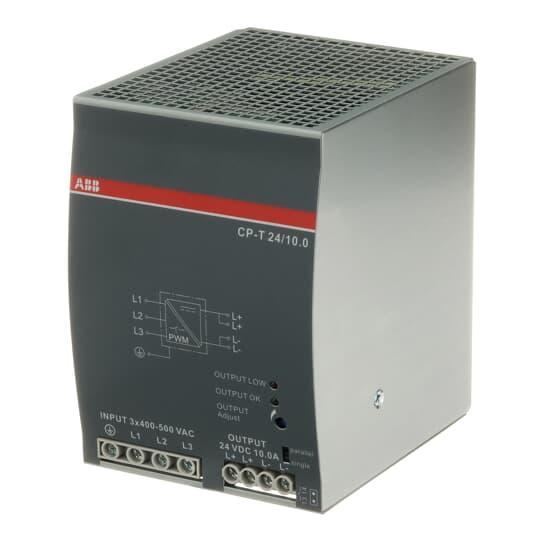

ABB 1SVR427055R0000 Type CP-T 3-Phase Primary Switch Mode Power Supply, 340 to 575 V AC/480 to 820 V DC Input, 24 VDC Output, 240 W Power Rating, 0.65 A Input, 10 A Output, DIN Rail Mount

Sku #01677966236

MFG #1SVR427055R0000

Attributes

Type:	Type CP-T 3-Phase
Output Voltage:	24 V DC
Amperage Rating:	0.65 A Input/10 A Output

Input Voltage:	340 to 575 V AC/480 to 820 V DC
Power Rating:	240 W
Frequency Rating:	47 to 63 Hz

For applications that require reliable 24 VDC at 10 A power supply

3 x 400 to 500 VAC (340 to 575 VAC, 480 to 820 VDC) wide supply voltage range
Power reserve up to 50%
Integrated input fuse
Low power dissipation and low heating
Output voltage adjustable via front face rotary potentiometer "OUTPUT Adjust
Signaling contact "13-14" (solid state) for output voltage OK
Free convection cooling (no forced cooling with ventilators)
Open circuit, overload and short circuit stable
Ambient temperature range during operation -40 to 70 deg C
2-phase supply with a derating of the output to 75% possible/permitted
High efficiency of up to 90%

Documents

Specification Sheet

ABBABB 1SVR427055R0000 Type CP-T 3-Phase Primary Switch Mode Power Supply, 340 to 575 V AC/480 to 820 V DC Input, 24 VDC Output, 240 W Power Rating, 0.65 A Input, 10 A Output, DIN Rail Mount

SKU #01677966236

MFG #1SVR427055R0000
