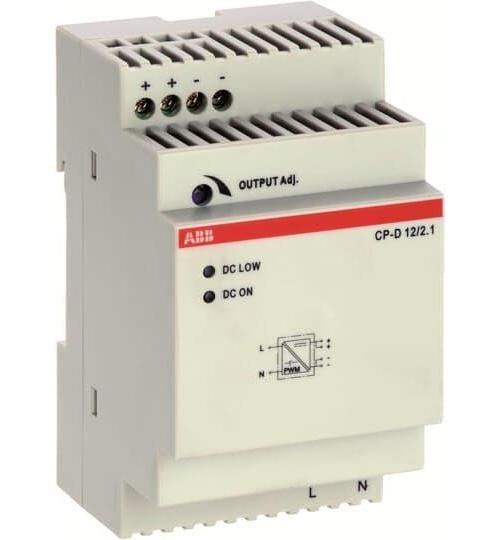

ABB 1SVR427043R1200 Type CP-D 1-Phase Switch Mode Power Supply, 90 to 264 V AC/120 to 375 V DC Input, 12 VDC Output, 25 W Power Rating, 502 mA Input, 2.1 A Output, DIN Rail Mount
Sku #01677966121
MFG #1SVR427043R1200
Attributes
| Type: | Type CP-D 1-Phase |
| Output Voltage: | 12 V DC |
| Amperage Rating: | 502 mA Input/2.1 A Output |
| Input Voltage: | 90 to 264 V AC/120 to 375 V DC |
| Power Rating: | 25 W |
| Frequency Rating: | 47 to 63 Hz |
- Light gray enclosure in RAL 7035
- Power reserve up to 50%
- Integrated input fuse
- Low power dissipation and low heating
- LEDs for status indication
- Structural form ideal for installation in distribution panels
- Output voltage adjustable via front face rotary potentiometer "OUTPUT Adjust
- U/I characteristic (fold forward behaviour at overload - no switch off)
- Free convection cooling (no forced cooling with ventilators)
- Efficiency of type 80%
- Open circuit, overload and short circuit stable
- Ambient temperature range during operation -40 to 70 deg C
- 100 to 240 VAC (90 to 264 VAC, 120 to 375 VDC) wide range input
- IEC/EN 60950-1|IEC/EN 61000-6-2|IEC/EN 61000-6-3|UL 508|UL 60950|UL 1310|CAN/CSA C22.2 No. 107.1|CAN/CSA C22.2 No. 60950|CAN/CSA C22.2 No. 223|CCC Certified|cUL 508 File No. E174460|cUL Recognised|EAC Certified|CE Certified|BAA Compliant|CCC Certified|CE Certified|CAN/CSA C22.2 No.107.1|CAN/CSA C22.2 No.60950|CAN/CSA C22.2 No.223|cUL Listed|EAC Certified|IEC/EN 60950-1|IEC/EN 61000-6-2|IEC/EN 61000-6-3|UR Listed|UL 508|UL 60950|UL 1310
- For applications that require a lower cost 12 VDC at 2.1 A power supply
